Pump Spare Parts
​
JMP Marine (JMP Corp) Engine Cooling Pump Spare Parts, Major & Minor Service Parts Kits. All parts are made of the highest grade materials resulting better peformance and a longer lasting pump!
​
Direct replacements for the folllowing brands:
Caterpillar, Cummins, Detroit Diesel, Jabsco, John Deere, Johnson, Kohler, Northern Lights, Perkins, Sherwood, Volvo Penta, Westerbeke, Yanmar, and More.
NOTE: Make sure to review the JMP pump product page to make sure if the internal parts are also compatible to service OEM Genuine pumps.
JMP MARINE . . ."THE ONLY ONE"
#JSK002901 JMP Marine
Caterpillar Engine Cooling Seawater Pump Major Service Kit for JPR-CT3306
Please Note:
Major Kit #JSK002901 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes (All Internal Parts):
8100-01 (FLEXIBLE IMPELLER) - QTY:1
COV0006 (COVER PLATE) - QTY:1
GAK0007 (END COVER GASKET) - QTY:1
BOL0099 (END COVER HEX SCREWS) - QTY:5
CAMSET00502 (Old #CAMSET00501) (CAM SET) - QTY:1
MCSSET0003 (MECHANICAL SEAL SET) - QTY:1
SHA0050 (SHAFT) - QTY:1
RET0011 (OIL SEAL, RETAINER) - QTY:1
SNP0005 (SNAP RING) - QTY:1
SNP0013 (SNAP RING) - QTY:1
BER0036 (BEARING) - QTY:1
SLI0003 (SLINGER) - QTY:1
WER0009 (WEAR PLATE) - QTY:1
​
Approx Total Weight: 5.50 lbs / 2.50 kgs
​
JMP Marine Engine Cooling Pump: #JPR-CT3306
#JPR-CT3306 Replaces Caterpillar Pump P/N: 5N9357, 5N-9357
#JPR-CT3306 Replaces Jabsco Pump P/N(s): 17810-1000, 17810-1300
#JPR-CT3306 good for Engine Models: 3304, 3304B, 3306, 3306B, D330C
#JSK0072 JMP Marine
Caterpillar Engine Cooling Seawater Pump Major Service Kit for JPR-S7632
Please Note:
Major Kit #JSK0072 used Only for pump #JPR-S7632; Cannot be used in Genuine CAT Pump.
WHY: Internal changes made to pump parts for better quality and performance.
​
Kit Includes (All Internal Parts):
7608-01 (FLEXIBLE IMPELLER) - QTY:1
BER0039 (BEARING) - QTY:2
BOL0006 (HEX BOLT, END COVER) - QTY:3
BOL0036 (SPRING WASHER, END COVER) - QTY:3
BOL0037 (SPRING WASHER) - QTY:4
BOL0059 (HEX BOLT) - QTY:4
CAMSET0031 (CAM SET) - QTY:1
COV0036 (END COVER) - QTY:1
MCSSET0014 (MECHANICAL SEAL SET) - QTY:1
ORG0030 (O-RING, END COVER) - QTY:1
RET0035 (RETAINER) - QTY:1
SHA0076 (SHAFT) - QTY:1
SLI0006 (SLINGER) - QTY:1
SNP0011 (SNAP RING) - QTY:1
WER0019 (WEAR PLATE) - QTY:1
​
JMP Marine Engine Cooling Pump: #JPR-S7632
#JPR-S7632 Replaces Caterpillar Pump P/N(s): 4P7168, 4P-7168, 1131109, 113-1109, 1528392, 152-8392, 1674252, 167-4252, 1706116, 170-6116
#JPR-S7632 Replaces Sherwood Pump P/N(s): P1710, P1710-01, P1710-02, P1710-04, P1710A, P1710C, P1710X, P1726, P1726X, P1732-01, P1732-02, P1732A, P1732C, P1732X
#JPR-S7632 good for Engine Models: 3116, 3126, 3126B, C7, C9
#JSK0124 JMP Marine
Caterpillar Engine Cooling Seawater Pump Major Service Kit for JPR-CT3412
Please Note:
Major Kit #JSK0124 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes (All Internal Parts):
IMP0026 (BRONZE IMPELLER) - QTY:1
BER0037 (BALL BEARING) - QTY:1
BER0038 (BALL BEARING) - QTY:1
BOL0058 (FLAT WASHER) - QTY:1
BOL0076 (LOCK NUT) - QTY:1
BOL0097 (COTTER PIN) - QTY:1 (*Part of Seal Kit #JMK0002)
BOL0110 (SLOTTED NUT) - QTY:1
BOL0111 (LOCK WASHER) - QTY:1
BOL0112 (FLAT WASHER) - QTY:1
BOL0113 (HEX BOLT) - QTY:1
KEY0017 (KEY) - QTY:1
MCSSET0009 (MECHANICAL SEAL SET) - QTY:1 (*Part of Seal Kit #JMK0002)
NIP0008 (DRAIN PLUG) - QTY:1
PORT001G (PLATE, PORT) - QTY:2
ORG0023 (O-RING, PORT PLATE) - QTY:2
ORG0024 (O-RING, BEARING HOUSING) - QTY:1
ORG0029 (O-RING) - QTY:1 (*Part of Seal Kit #JMK0002)
RET0020 (OIL SEAL) - QTY:1 (*Part of Seal Kit #JMK0002)
RIG0001 (DISTANCE RING) - QTY:1
SHA0084G (SHAFT) - QTY:1
SNP0016 (SNAP RING) - QTY:1
SNP0018 (SNAP RING) - QTY:1
SPC0003 (SPACER) - QTY:1 (*Part of Seal Kit #JMK0002)
SPC0005 (SPACER) - QTY:1
SPC0006 (SPACER) - QTY:1
SPC0007 (SHIM) - QTY:1
SPC0008 (SHIM) - QTY:1
​
Approx Total Weight: 32 lbs / 14.55 kgs
​
JMP Marine Engine Cooling Pump: #JPR-CT3412
#JPR-CT3412 Replaces Caterpillar Pump P/N(s): 7C3613, 7C-3613, 3N7790, 3N-7790, 0R7720, 0R-7720
#JPR-CT3412 Replaces Gilkes Pump P/N: M Series 250/700
#JPR-CT3412 good for Engine Models: 3408, 3408B, 3408C, 3412, 3412C, 3412D
#JSK0125 JMP Marine
Caterpillar Engine Cooling Seawater Pump Major Service Kit for JPR-CT3508
Please Note:
Major Kit #JSK0125 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes (All Internal Parts):
IMP0063 (BRONZE IMPELLER) - QTY:1
BER0037 (BALL BEARING) - QTY:1
BER0038 (BALL BEARING) - QTY:1
BOL0058 (FLAT WASHER) - QTY:1
BOL0076 (LOCK NUT) - QTY:1
BOL0097 (COTTER PIN) - QTY:1 (*Part of Seal Kit #JMK0002)
BOL0110 (SLOTTED NUT) - QTY:1
BOL0111 (LOCK WASHER) - QTY:1
BOL0112 (FLAT WASHER) - QTY:1
BOL0113 (HEX BOLT) - QTY:1
KEY0017 (KEY) - QTY:1
MCSSET0009 (MECHANICAL SEAL SET) - QTY:1 (*Part of Seal Kit #JMK0002)
NIP0008 (DRAIN PLUG) - QTY:1
PORT001G (PLATE, PORT) - QTY:2
ORG0023 (O-RING, PORT PLATE) - QTY:2
ORG0024 (O-RING, BEARING HOUSING) - QTY:1
ORG0029 (O-RING) - QTY:1 (*Part of Seal Kit #JMK0002)
RET0020 (OIL SEAL) - QTY:1 (*Part of Seal Kit #JMK0002)
RIG0001 (DISTANCE RING) - QTY:1
SHA0084G (SHAFT) - QTY:1
SNP0016 (SNAP RING) - QTY:1
SNP0018 (SNAP RING) - QTY:1
SPC0003 (SPACER) - QTY:1 (*Part of Seal Kit #JMK0002)
SPC0005 (SPACER) - QTY:1
SPC0006 (SPACER) - QTY:1
SPC0007 (SHIM) - QTY:1
SPC0008 (SHIM) - QTY:1
​
Approx Total Weight: 32 lbs / 14.55 kgs
​
JMP Marine Engine Cooling Pump: #JPR-CT3508
#JPR-CT3508 Replaces Caterpillar Pump P/N(s): 7C3614, 7C-3614, 5N2600, 5N-2600, 0R7721, 0R-7721
#JPR-CT3508 Replaces Gilkes Pump P/N: M Series 250/700
#JPR-CT3508 good for Engine Models: 3408, 3408B, 3412, 3412C, 3412D, 3412E, 3508, 3508B, 3508C, 3512, 3512B, 3516B
#JSK0138 JMP Marine
Caterpillar Engine Cooling Seawater Pump Major Service Kit for JPR-CT1200R
Please Note:
Major Kit #JSK0138 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Replacement / Compatible to OEM Major Kit P/N:
-
Sherwood Major Kit P/N: 25148
​
Kit Includes (All Internal Parts):
8359-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0043 (QUAD RING) - QTY:2
COV0038 (END COVER PLATE) - QTY:1
CAMSET003201 (CAM SET) - QTY:1
MCSSET0027 (MECHANICAL SEAL SET) - QTY:1
WER0020 (WEAR PLATE) - QTY:1
BER0010 (BALL BEARING) - QTY:1
BER0064 (BALL BEARING) - QTY:1
BOL0006 (BOLTS, END COVER) - QTY:5
BOL0036 (SPRING WASHER) - QTY:5
BOL0038 (SPRING WASHER) - QTY:3
BOL0194 (HEX BOLT, PUMP BODY) - QTY:3
NIP0016 (DRAIN PLUG) - QTY:1
ORG0054 (V-RING) - QTY:1
PIN0011 (PIN) - QTY:1
RET0042 (OIL SEAL, RETAINER) - QTY:1
SHA0146 (SHAFT) - QTY:1
SNP0008 (SNAP RING) - QTY:1
SNP0013 (SNAP RING) - QTY:1
SPC0012 (SPACER, SHIM) - QTY:1
SPC0035 (SPACER) - QTY:1
​
Approx Total Weight: 12 lbs / 5.50 kgs
​
JMP Marine Engine Cooling Pump: #JPR-CT1200R (*Complete pump assembly not yet available)
Replaces Caterpillar Pump P/N: 3596661, 359-6661
Replaces Sherwood Pump P/N: G2904X
Engine Models: C12
All Parts Internally Compatible to Genuine: YES
#JSK0139 JMP Marine
Caterpillar Engine Cooling Seawater Pump Major Service Kit for JPR-CT1800R
Please Note:
Major Kit #JSK0139 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Replacement / Compatible to OEM Major Kit P/N:
-
Sherwood Major Kit P/N: 25147
​
Kit Includes (All Internal Parts):
8359-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0043 (QUAD RING) - QTY:2
COV0038 (END COVER PLATE) - QTY:1
CAMSET0032 (CAM SET) - QTY:1
MCSSET0027 (MECHANICAL SEAL SET) - QTY:1
WER0020 (WEAR PLATE) - QTY:1
BER0063 (BALL BEARING) - QTY:2
BOL0006 (BOLTS, END COVER) - QTY:5
BOL0036 (SPRING WASHER) - QTY:5
BOL0038 (SPRING WASHER) - QTY:3
BOL0058 (PLAIN WASHER) - QTY:1
BOL0194 (HEX BOLT, PUMP BODY) - QTY:3
BOL0195 (HEX NUT, GEAR) - QTY:1
COV0041 (COVER, BEARING) - QTY:1
KEY0034 (KEY, WOODRUFF) - QTY:1
ORG0054 (V-RING) - QTY:1
PIN0011 (PIN) - QTY:1
RET0042 (OIL SEAL, RETAINER) - QTY:1
SHA0147 (SHAFT) - QTY:1
SNP0008 (SNAP RING) - QTY:1
SNP0013 (SNAP RING) - QTY:1
SPC0012 (SPACER, SHIM) - QTY:1
SPC0036 (SPACER) - QTY:1
​
Approx Total Weight: 12 lbs / 5.50 kgs
​
JMP Marine Engine Cooling Pump: #JPR-CT1800R
#JPR-CT1800R Replaces Caterpillar Pump P/N: 3754703, 375-4703
#JPR-CT1800R Replaces Sherwood Pump P/N(s): G2902X, G2902-01
#JPR-CT1800R good for Engine Models: C18
All Parts Internally Compatible to Genuine: YES
#JSK0140 JMP Marine
Caterpillar Engine Cooling Seawater Pump Major Service Kit for JPR-CT3200R
Please Note:
Major Kit #JSK0140 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Replacement / Compatible to OEM Major Kit P/N:
-
Caterpillar Major Kit P/N: 3047616, 304-7616
-
Sherwood Major Kit P/N: 25154
​
Kit Includes (All Internal Parts):
8459-01 (FLEXIBLE IMPELLER) - QTY:1
BOL0007 (HEX BOLT, END COVER) - QTY:9
BOL0036 (SPRING WASHER, END COVER) - QTY:5
CAMSET0043 (CAM SET) - QTY:1
COV0057 (END COVER PLATE) - QTY:1
MCSSET0029 (MECHANICAL SEAL SET) - QTY:1
ORG0080 (QUAD RING) - QTY:1
SNP0028 (SNAP RING) - QTY:1
WER0030 (WEAR PLATE) - QTY:1
BER0065 (BALL BEARING) - QTY:2
COV0058 (COVER, BEARING) - QTY:1
BOL0196 (BOLT) - QTY:4
BOL0197 (LOCK WASHER) - QTY:1
BOL0198 (THRUST WASHER) - QTY:1
BOL0202 (BOLT) - QTY:1
ORG0074 (V-RING) - QTY:1
PIN0011 (PIN) - QTY:1
RET0056 (OIL SEAL, RETAINER) - QTY:
SHA0148 (SHAFT) - QTY:1
SNP0014 (SNAP RING) - QTY:1
​
Approx Total Weight: 12 lbs / 5.50 kgs
​
JMP Marine Engine Cooling Pump: #JPR-CT3200R (*Complete pump assembly not yet available)
Replaces Caterpillar Pump P/N: 3228594, 322-8594
Replaces Sherwood Pump P/N: G3001X
Engine Models: C32
All Parts Internally Compatible to Genuine: YES
#JSK0143 JMP Marine
Caterpillar Engine Cooling Seawater Pump Major Service Kit for JPR-CT0440
Please Note:
Major Kit #JSK0143 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps (See note regarding mechanical seal set when servicing OEM pumps). JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes (All Internal Parts):
7400-01 (FLEXIBLE IMPELLER) - QTY:1
BER0035 (BEARING) - QTY:2
CAMSET0039 (CAM SET) - QTY:1
BOL0080 (END COVER SCREWS) - QTY:4
MCSSET0008 (MECHANICAL SEAL SET) - QTY:1
Note: MCSSET0008 can only be used to service JMP Marine pump JPR-CT0440. If using kit JSK0143 or JSM0143 to service OEM pump you MUST use original CAT mechanical seal p/n 4204328 in place of MCSSET0008. Why? JMP Marine Seal is thicker vs OEM Seal.
COV0047 (END COVER PLATE) - QTY:1
ORG0067 (O-RING, END COVER) - QTY:1
ORG0044 (O-RING, SLINGER) - QTY:1
ORG0057 (O-RING, MOUNTING) - QTY:1
RET0013 (OIL SEAL, RETAINER) - QTY:1
SHA0158 (SHAFT) - QTY:1
SNP0006 (SNAP RING, SMALL) - QTY:1
SNP0010 (SNAP RING, LARGE) - QTY:1
SPC0019 (SPACER) - QTY: 1
WER0029 (WEAR PLATE) - QTY:1
​
Approx Total Weight: 3.0 lbs / 1.40 kgs
​
JMP Marine Engine Cooling Pump: #JPR-CT3200R (*Complete pump assembly not yet available)
#JPR-CT0440 Replaces Caterpillar Pump P/N: 4255412, 425-5412
#JPR-CT0440 Replaces Sherwood Pump P/N: 29630-1101
Note: You must confirm that your pump drive gear setup has same number of teeth being 33 which would then match with JPR-CT0440
#JPR-CT0440 good for Engine Models: C4.4
#JSK0020 JMP Marine
Cummins Engine Cooling Seawater Pump Major Service Kit for JPR-C1040
Please Note:
#JSK0020 used ONLY for JMP Marine Pump #JPR-C1040; Cannot be used in Genuine Cummins Pump.
Internal changes made to pump parts for better quality and performance vs OEM.
​
Kit Includes (All Internal Parts):
8001-01 (FLEXIBLE IMPELLER) - QTY:1
BER0010 (BEARING) - QTY:1
BOL0032 (PLAIN WASHER) - QTY:1
BOL0039 (SPRING WASHER) - QTY:1
BOL0060 (BOLT) - QTY:1
BOL0081 (SCREWS) - QTY:5
CAM0005 (CAM) - QTY:1
COV0005 (COVER PLATE) - QTY:1
KEY0002 (KEY) - QTY:1
MCS0003 (MECHANICAL SEAL) - QTY:1
ORG0015 (O-RING) - QTY:1
RET0007 (OIL SEAL) - QTY:1
RET0010 (OIL SEAL) - QTY: 1
SHA0019 (SHAFT) - QTY:1
SLI0003 (SLINGER) - QTY:1
SNP0004 (SNAP RING) - QTY:1
SNP0013 (SNAP RING) - QTY:1
WER0003 (WEAR PLATE) - QTY:1
​
JMP Marine Engine Cooling Pump: #JPR-C1040
#JPR-C1040 Replaces Cummins Pump P/N(s): 3010336, 3278137
#JPR-C1040 Replaces Jabsco P/N(s): 7420-0101 (Replaced by 7420-0004)
#JPR-C1040 good for Engine Models: 855 Series, N855M, NT855M, NT855-D(M), NTA855M, N855, NH220, NH250, VT555
#JSK0047 JMP Marine
Cummins Engine Cooling Seawater Pump Major Service Kit for JPR-C1025
Please Note:
Major Kit #JSK0047 used Only for pump #JPR-C1025; Cannot be used in Genuine Cummins Pump.
WHY: Internal changes made to pump parts for better quality and performance.
​
Kit Includes (All Internal Parts):
7300-01 (FLEXIBLE IMPELLER) - QTY:1
BER0002 (BEARING) - QTY:2
CAMSET0020 (CAM) - QTY:1
GAK0023 (GASKET) - QTY:1
KEY0016 (KEY) - QTY:1
MCSSET0001 (MECHANICAL SEAL) - QTY:1
ORG0013 (O-RING) - QTY:1
PBC0092 (IMPELLER HOUSING) - QTY:1
SLI0005 (SLINGER) - QTY:1
RET0018 (OIL SEAL, RETAINER) - QTY:1
SNP0006 (SNAP RING) - QTY:1
SNP0009 (SNAP RING) - QTY:1
SHA0051 (SHAFT) - QTY:1
WER0014 (WEAR PLATE) - QTY:1
​
JMP Marine Engine Cooling Pump: #JPR-C1025
#JPR-C1025 Replaces Cummins Pump P/N(s): 3907458, 3912019
#JPR-C1025 Replaces Sherwood P/N(s): M71, M70 (M70 replaced by M71)
#JPR-C1025 good for Engine Models: 4B3.9M, 4B3.9D(M), 4BT3.9M, 4BT3.9-D9(M), 4BTA3.9M, 4B5.9M, 6B5.9M, 6B5.9-D(M), 6BT5.9M, 6BT5.9-D(M)
#JSK0067 JMP Marine
Cummins Engine Cooling Seawater Pump Major Service Kit for JPR-S7627, JPR-S7630
Please Note:
Major Kit #JSK0067 can be used Only for pump JPR-S7627, JPR-S7630; Cannot be used in Genuine Cummins Pumps.
WHY: Internal changes made to pump parts for better quality and performance.
​
Kit Includes (All Internal Parts):
7608-01 (FLEXIBLE IMPELLER) - QTY:1
BER0039 (BEARING) - QTY:2
CAMSET0031 (CAM) - QTY:1
GAK0030 (GASKET) - QTY:1
MCSSET0014 (MECHANICAL SEAL) - QTY:1
ORG0030 (O-RING) - QTY:1
SLI0006 (SLINGER) - QTY:1
SHA0075 (SHAFT) - QTY:1
WER0019 (WEAR PLATE) - QTY:1
RET0035 (RETAINER) - QTY:1
BOL0138 (NUT) - QTY:1
BOL0006 (BOLT) - QTY:3
BOL0036 (SPRING WASHER) - QTY:3
BOL0059 (BOLT) - QTY:4
BOL0037 (SPRING WASHER) - QTY:4
COV0036 (COVER) - QTY:1
​
JMP Marine Engine Cooling Pump: #JPR-S7627
#JPR-S7627 Replaces Cummins Pump P/N(s): 3897194, 3964767
#JPR-S7627 Replaces Sherwood P/N(s): P1727, P1727FB, P1727FB-01, P1727B-02, P1727A, P1727C, P1727X
#JPR-S7627 good for Engine Models: 6CT, 6CTA8.3M (JWAC), 6CTA8.3M2, QSC Engines
​
JMP Marine Engine Cooling Pump: #JPR-S7630
#JPR-S7630 Replaces Cummins Pump P/N(s): 3866493, 3897691, 3964765, 4003526, 5265994, 5265995, 5265996, 5265999, 526599500, 526599600, 526599900
#JPR-S7630 Replaces Sherwood P/N(s): P1730, P1730X, P1730-01, P1730-02, P1730F-01, P1730F-02, P1730A, P1730C, P1731, P1731-01, P1731-02, P1731F-01, P1731F-02, P1731-04
#JPR-S7630 good for Engine Models: 6CT, 6BTA5.9M2, 6BTA5.9M(JWAC), 6BTA5.9M3 (SWAC), 6CT8.3M, 6CT8.3-D(M), 6CTA8.3M, 6CTA8.3M2(SWAC), 6CTA8.3-D(M), 6CTA8.3-M1(JWAC)
#JSK0069 JMP Marine
Cummins Engine Cooling Seawater Pump Major Service Kit for JPR-C1905
Please Note:
Major Kit #JSK0069 parts are fully compatible to Genuine. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product.
​
Replacement / Compatible to Major Kit P/N:
-
Cummins Major Kit P/N: 3897385
​
Kit Includes (All Internal Parts):
9001-01 (FLEXIBLE IMPELLER) - QTY:1
BOL0005 (HEX BOLT, END COVER) - QTY:4
BOL0035 (SPRING WASHER, END COVER) - QTY:4
CAMSET0019 (CAM LINER) - QTY:1
COV001201 (END COVER) - QTY:1
MCSSET0006 (MECHANICAL SEAL SET) - QTY:1
ORG0009 (O-RING) - QTY:2
ORG0047 (O-RING, END COVER) - QTY:1
SNP0008 (SNAP-RING) - QTY:1
SPC0012 (SHIM, SPACER) - QTY:1
WER0011 (WEAR PLATE) - QTY:1
BER0005 (BEARING) - QTY:1
BER0020 (BEARING) - QTY:1
ORG0003 (O-RING) - QTY:1
ORG0048 (O-RING) - QTY:1
ORG0058 (O-RING) - QTY:1
RET001301 (OIL SEAL, RETAINER) - QTY:1
SHA0088 (SHAFT) - QTY:1
SNP0013 (SNAP-RING) - QTY:1
​
Approx Total Weight: 14.50lb / 6.70 kg
​
JMP Marine Engine Cooling Pump: #JPR-C1905
#JPR-S7630 Replaces Cummins Pump P/N: 3866609
#JPR-S7630 Replaces Sherwood P/N: 18770-0003
#JSK0080 JMP Marine
Cummins Engine Cooling Seawater Pump Major Service Kit for JPR-C1100
Please Note:
This kit includes all internal parts for full entire rebuild of pump vs Cummins kit p/n 5260396 which has less parts. You get ALL parts with JMP Marine kits! JSK0080 parts are fully compatible to genuine and can be used to service both JMP Marine pump JPR-C1100 along with Genuine OEM pumps!
Services JMP Marine Engine Cooling Pump JPR-C1100 & Genuine Cummins Pump(s): 3349392 / 4929178 / 5260393 & Jabsco Pump(s): G2903X, G2903-01, G2903-02
​
Replacement / Compatible to Major Kit P/N:
-
Cummins Major Kit P/N: 4930629
-
John Deere Major Kit P/N: DZ108626
-
Sherwood Major Kit P/N: 25045
​
Kit Includes (All Internal Parts):
8359-01 (FLEXIBLE IMPELLER) - QTY:1
CAMSET0032 (CAM SET) - QTY:1
PIN0007 (CAM PIN) - QTY:1
MCSSET0019 (MECHANICAL SEAL SET) - QTY:1
SHA0093 (SHAFT) - QTY:1
ORG0055 (O-RING) - QTY:1
ORG0054 (O-RING) - QTY:1
RET0042 (OIL SEAL) - QTY:1
COV0041 (BEARING COVER) - QTY:1
BER0052 (BEARING) - QTY:2
WER0020 (WEAR PLATE) - QTY:1
COV0038 (END COVER) - QTY:1
SNP0013 (SNAP RING) - QTY:1
BOL0036 (SPRING WASHER) - QTY:5
BOL0007 (END COVER BOLT) - QTY:5
​
Approx Total Weight: 11.0 lbs / 5.0 kgs
​
JMP Marine Engine Cooling Pump: #JPR-C1100
#JPR-C1100 Replaces Cummins Pump P/N(s): 3349392, 4929178, 5260393
#JPR-C1100 Replaces Sherwood P/N(s): G2903X, G2903-01, G2903-02
#JPR-C1100 good for Engine Models: QSM11
​
JMP Marine Engine Cooling Pump: #JPR-JD60IF2
#JPR-JD60IF2 Replaces John Deere Pump P/N: DZ108620
#JPR-JD60IF2 Replaces Sherwood P/N: G2910X
#JPR-JD60IF2 good for Engine Models: 6135AFM75, 6135AFM85, 6135SFM85
#JSK0117 JMP Marine
Cummins Engine Cooling Seawater Pump Major Service Kit for JPR-C3800V
Please Note:
Major Kit #JSK0117 parts are fully compatible to Genuine. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Replacement / Compatible to Major Kit P/N:
-
Cummins Major Kit P/N: 4334438
-
Jabsco Major Kit P/N: 99202-1000
​
Kit Includes (All Internal Parts):
*Does not include Bronze Impeller #IMP0064 or Wear Ring #RIG0004. For these parts please see Major Kit #JSK0118
​
9500-01K (FLEXIBLE IMPELLER KIT) - QTY:1
BER0049 (BALL BEARING) - QTY:2
BOL0033 (FLAT WASHER) - QTY:6
BOL0076 (NUT) - QTY:1
BOL0097 (COTTER PIN) - QTY:1
BOL0168 (SPLIT LOCK WASHER) - QTY:1
BOL0169 (SCREW) - QTY:6
CAMSET0040 (CAM RING) - QTY:1
FLP0002 (FLAPPER ASSEMBLY) - QTY:1
KEY0029 (SQUARE KEY, SHORT) - QTY:1
KEY0030 (SQUARE KEY, LONG) - QTY:1
MCSSET0022 (MECHANICAL SEAL SET) - QTY:1
NIP0016 (PIPE PLUG) - QTY:1
ORG0003 (O-RING, SMALL) - QTY:1
ORG0048 (O-RING, MEDIUM) - QTY:3
ORG0058 (O-RING, LARGE) - QTY:1
ORG0064 (O-RING, X-LARGE) - QTY:2
PIN0009 (DOWEL PIN) - QTY:1
RET001301 (LIP SEAL, SMALL) - QTY:1
RET0050 (LIP SEAL, LARGE) - QTY:1
SHA0116 (SHAFT) - QTY:1
SNP0008 (RETAINING RING, SMALL) - QTY:1
SNP0014 (RETAINING RING, LARGE) - QTY:1
WER0027 (WEAR PLATE) - QTY:2
​
Approx Total Weight: 16.50 lbs / 8.0 kgs
​
JMP Marine Engine Cooling Pump: #JPR-C3800V
#JPR-C3800V Replaces Cummins Pump P/N(s): 4314820, 3393018, 4314522
#JPR-C3800V Replaces Jabsco P/N(s): 15780-0000
#JPR-C3800V good for Engine Models: K38/K50/KTA38/KTA50
#JSK0118 JMP Marine
Cummins Engine Cooling Seawater Pump Major Service Kit for JPR-C3800V
Please Note:
Major Kit #JSK0118 parts are fully compatible to Genuine. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Replacement / Compatible to Major Kit P/N:
-
Cummins Major Kit P/N: 4334438
-
Jabsco Major Kit P/N: 99202-1000
​
Kit Includes:
*Bronze Impeller #IMP0064 & Wear Ring #RIG0004. For all other parts please see Major Kit #JSK0117
​
IMP0064 (BRONZE IMPELLER) - QTY:1
RIG0004 (WEAR RING) - QTY:1
​
Approx Total Weight: 9.0 lbs / 4.10 kgs
​
JMP Marine Engine Cooling Pump: #JPR-C3800V
#JPR-C3800V Replaces Cummins Pump P/N(s): 4314820, 3393018, 4314522
#JPR-C3800V Replaces Jabsco P/N(s): 15780-0000
#JPR-C3800V good for Engine Models: K38/K50/KTA38/KTA50
#JSK0122 JMP Marine
Cummins Engine Cooling Seawater Pump Major Service Kit for
JPR-C1900, JPR-C1900G
Please Note:
Major Kit #JSK0122 parts are fully compatible to Genuine. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes (All Internal Parts):
IMP002601 (BRONZE IMPELLER) - QTY:1
BER0037 (BALL BEARING) - QTY:1
BER0038 (BALL BEARING) - QTY:1
BOL01101 (SLOTTED NUT) - QTY:1
BOL0111 (LOCK WASHER) - QTY:1
BOL0112 (FLAT WASHER) - QTY:1
BOL011301 (HEX BOLT) - QTY:1
BOL0117 (SET SCREW) - QTY:1
MCSSET0009 (MECHANICAL SEAL SET) - QTY:1 (*Part of Seal Kit #JMK0001)
NIP0008 (PLUG, DRAIN) - QTY:1
NIP0009 (PIN, GREASE) - QTY:2
ORG0023 (O-RING) - QTY:2
ORG0024 (O-RING) - QTY:1
ORG0029 (O-RING) - QTY:1 (*Part of Seal Kit #JMK0001)
PORT001G (PORT PLATE) - QTY:2
RET0020 (OIL SEAL) - QTY:1 (*Part of Seal Kit #JMK0001)
RET0022 (OIL SEAL) - QTY:1 (*Part of Seal Kit #JMK0001)
RIG0002 (RING, DISTANCE) - QTY:1
SHA0054 (SHAFT) - QTY:1
SNP0016 (SNAP RING) - QTY:1
SNP0018 (SNAP RING) - QTY:1
SPC0003 (SPACER) - QTY:1 (*Part of Seal Kit #JMK0001)
SPC0005 (COLLAR SEAL) - QTY:1
SPC0009 (COLLAR SEAL) - QTY:1
SPC0010 (SHIM, 0.3mm) - QTY:2
SPC0011 (SHIM, 0.1mm) - QTY:2
​
Approx Total Weight: 32.0 lbs / 14.55 kgs
​
JMP Marine Engine Cooling Pump: #JPR-C1900, JPR-C1900G
#JPR-C1900 & C1900G Replaces Cummins Pump P/N(s): 3049158, 3074540
#JPR-C1900 & C1900G Replaces Gilkes P/N(s): 44955-052, 44955052
#JPR-C1900 & C1900G good for Engine Models: K19, KT19M, KTA19M, KTA19M3/M6, KTA19-D(M), KTA19-D(M1)
#JSK0123 JMP Marine
Cummins Engine Cooling Seawater Pump Major Service Kit for
JPR-C3800, JPR-C3800G
Please Note:
Major Kit #JSK0123 parts are fully compatible to Genuine. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes (All Internal Parts):
IMP002603 (BRONZE IMPELLER) - QTY:1
BER0037 (BALL BEARING) - QTY:1
BER0038 (BALL BEARING) - QTY:1
BOL01101 (SLOTTED NUT) - QTY:1
BOL0111 (LOCK WASHER) - QTY:1
BOL0112 (FLAT WASHER) - QTY:1
BOL011301 (HEX BOLT) - QTY:1
BOL0117 (SET SCREW) - QTY:1
MCSSET0009 (MECHANICAL SEAL SET) - QTY:1 (*Part of Seal Kit #JMK0001)
NIP0008 (PLUG, DRAIN) - QTY:1
NIP0009 (PIN, GREASE) - QTY:2
ORG0023 (O-RING) - QTY:2
ORG0024 (O-RING) - QTY:1
ORG0029 (O-RING) - QTY:1 (*Part of Seal Kit #JMK0001)
PORT001G (PORT PLATE) - QTY:2
RET0020 (OIL SEAL) - QTY:1 (*Part of Seal Kit #JMK0001)
RET0022 (OIL SEAL) - QTY:1 (*Part of Seal Kit #JMK0001)
RIG0001 (RING, DISTANCE) - QTY:1
SHA0054 (SHAFT) - QTY:1
SNP0016 (SNAP RING) - QTY:1
SNP0018 (SNAP RING) - QTY:1
SPC0003 (SPACER) - QTY:1 (*Part of Seal Kit #JMK0001)
SPC0005 (COLLAR SEAL) - QTY:1
SPC0009 (COLLAR SEAL) - QTY:1
SPC0010 (SHIM, 0.3mm) - QTY:2
SPC0011 (SHIM, 0.1mm) - QTY:2
​
Approx Total Weight: 32.0 lbs / 14.55 kgs
​
JMP Marine Engine Cooling Pump: #JPR-C3800, JPR-C3800G
#JPR-C3800 & C3800G Replaces Cummins Pump P/N(s): 3085649, 3049157, 3897669
#JPR-C3800 & C3800G good for Engine Models: K38, KT38M, KTA38M, KTA50M
#JSK0024 JMP Marine
Detroit Diesel Engine Cooling Seawater Pump Major Service Kit for JPR-G6100
Please Note:
Major Kit #JSK0024 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest quality grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Replacement / Equivalent Major Kit P/N:
-
Detroit Diesel Major Kit P/N: 5197224
​
Kit Includes (All Internal Parts):
8100-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0007 (GASKET, END COVER) - QTY:1
COV0006 (END COVER) - QTY:1
BOL0005 (SCREW, END COVER) - QTY:5
CAMSET000501 (CAM SET) - QTY:1
MCSSET0003 (MECHANICAL SEAL SET) - QTY:1
RET0011 or RET0051 (OIL SEAL, RETAINER) - QTY:1
SHA0023 (SHAFT) - QTY:1
KEY0011 (KEY, SHAFT) - QTY:1
SLI0003 (SLINGER) - QTY:1
SNP0005 (SNAP-RING, SMALL) - QTY:1
SNP0013 (SNAP-RING, LARGE) - QTY:1
WER0009 (WEAR PLATE) - QTY:1
BER0012 (BALL BEARING) - QTY:1
GAK0022 (GASKET, MOUNTING ADAPTER) - QTY:1
​
Approx Total Weight: 6.0 lb / 2.75 kg
​
JMP Marine Engine Cooling Pump: #JPR-C1040
#JPR-C1040 Replaces Detroit Diesel Pump P/N(s): 2313002, 23501083, 23507971, 5107480, 5115396, 5115652, 5137208, 5186250
#JPR-C1040 Replaces Jabsco P/N: 2570-0051, 2570-3000, 2570-3100
#JPR-C1040 good for Engine Models: 6V53, 6V71, 6V92, 8V53
All Parts Internally Compatible to Genuine: YES
#JSK005202 JMP Marine
MTU2000 Engine Cooling Seawater Pump Major Service Kit for
00011970/73, MDEC, M90 Series
Please Note:
Service Kit #JSK005202 parts are fully compatible to Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes (All Internal Parts):
Does not included bronze impeller (sold separately); please refer to #IMP0052 for Bronze Impeller.
​
BER0040 (BEARING) - QTY:1
BER0041 (BEARING) - QTY:1
MCSSET001501 (MECHANICAL SEAL SET) - QTY:1
ORG0036 (O-RING) - QTY:1
ORG002901 (O-RING) - QTY:1
PBC0136 (OIL SEAL CASE / HOUSING) - QTY:1
SHA0068 (SHAFT) - QTY:1
RET0032 / RET0033 (RETAINER) - QTY:1
SNP0019 (SNAP RING) - QTY:1
SPC0022 (SHIM) - QTY:1
SPC0024 (SPACER) - QTY:1
​
Approx Total Weight: 13.0 lb / 5.90 kg
#JSK0055 JMP Marine
MTU2000 Engine Cooling Freshwater Pump Major Service Kit for
00011970/73 MDEC, M90 SERIES
Please Note:
Major Kit #JSK0055 is fully compatible to OEM; JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
MCSSET0015 (MECHANICAL SEAL SET) - QTY:1
RET0033 (OIL SEAL, RETAINER) - QTY:1
SHA069 (SHAFT) - QTY:1
ORG0049 (O-RING) - QTY:1
ORG0050 (O-RING) - QTY:1
ORG0051 (O-RING) - QTY:1
BER0042 (BEARING) - QTY:1
BER0043 (BEARING) - QTY:1
​
Approx Total Weight: 9.0 lbs / 4.10 kgs
#JSK0079 JMP Marine
Detroit Diesel Engine Cooling Seawater Pump Major Service Kit for JPR-G6500
Please Note:
Major Kit #JSK0079 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest quality grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes (All Internal Parts):
9000-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0047 (O-RING, END COVER) - QTY:1
COV001201 (END COVER) - QTY:1
BOL010501 (HEX BOLT, END COVER) - QTY:4
BOL0035 (SPRING WASHER, END COVER BOLT) - QTY:4
CAMSET0019 (CAM LINER, BRONZE/ALUMINUM) - QTY:1
MCSSET0007 (MECHANICAL SEAL SET) - QTY:1
ORG0048 (O-RING) - QTY:1
RET001301 (OIL SEAL, RETAINER) - QTY:1
SHA0091 (SHAFT) - QTY:1
SLI0003 (SLINGER) - QTY:1
SNP0013 (SNAP-RING, LARGE) - QTY:1
WER0011 (WEAR PLATE) - QTY:1
BER0005 (BALL BEARING) - QTY:1
BER0020 (BALL BEARING) - QTY:1
​
Approx Total Weight: 15.0 lbs / 6.82 kgs
​
JMP Marine Engine Cooling Pump: #JPR-C1040
#JPR-G6500 Replaces Detroit Diesel Pump P/N(s): 23525200, 23522735, 23535447
#JPR-G6500 Replaces Jabsco P/N: 17540-0001, 17540-0201
#JPR-G6500 good for Engine Models: Series 60
All Parts Internally Compatible to Genuine: YES
#JSK0076 JMP Marine
John Deere Engine Cooling Seawater Pump Major Service Kit for JPR-JD25UH
Please Note:
Major Kit #JSK0076 used Only for JMP Marine pump #JPR-JD25UH; Cannot be used in Genuine Pump Models.
WHY: Internal changes made to pump parts for better quality and performance for a longer lasting pump.
​
Kit Includes (All Internal Parts):
7400-01K (FLEXIBLE IMPELLER KIT) - QTY:1
BER0045 (BEARING) - QTY:2
RET0040 (OIL SEAL, RETAINER) - QTY:1
SHA0087 (SHAFT) - QTY:1
SLI0005 (SLINGER) - QTY:1
SNP0009 (SNAP-RING, LARGE) - QTY:1
MCSSET0008 (MECHANICAL SEAL SET) - QTY:1
ORG0013 (END COVER O-RING) - QTY:1
COV0003 (END COVER) - QTY:1
BOL0080 (END COVER SCREWS) - QTY:6
WER0001 (WEAR PLATE) - QTY:1
CAMSET000301 (CAM SET) - QTY:1
SNP0006 (SNAP RING) - QTY:1
​
Approx Total Weight: 2.75 lbs / 1.25 kgs
​
JMP Marine Engine Cooling Pump: #JPR-JD25UH
#JPR-JD25UH Replaces John Deere Pump P/N(s): RE535944, RE503068, DZ116559
#JPR-JD25UH Replaces Johnson P/N(s): 210-24753-01, 10-24907-01
#JPR-JD25UH Replaces Onan P/N: 132-0435
#JPR-JD25UH good for Engine Models: 4045DFM50, 4045DFM70, 4045TFM50, 4045TFM75, 4045TFM85, 6068SFM50,
6068TFM50, 6068TFM75, 6068TFM76
#JPR-JD25UH also fits Kohler Engine Models: 40E02/33EF02, 65E02/55EF02, 30E02/20EF02, 99E02/80LF02
#JSK0077 JMP Marine
John Deere Engine Cooling Seawater Pump Major Service Kit for JPR-S7619
Please Note:
Major Kit #JSK0077 can be used Only for pump JPR-S7619; Cannot be used in Genuine Pumps other than JMP Marine Pumps.
WHY: Internal changes made to pump parts for better quality and performance for a longer lasting pump.
​
Kit Includes (All Internal Parts):
7608-01K (IMPELLER) - QTY:1
BER0039 (BEARING) - QTY:2
BOL0006 (HEX BOLT) - QTY:3
BOL0036 (SPRING WASHER) - QTY:3
BOL0037 (SPRING WASHER) - QTY:4
BOL0059 (HEX BOLT) - QTY:4
CAMSET0031 (CAM SET) - QTY:1
COV0036 (END COVER) - QTY:1
ORG0030 (O-RING, END COVER) - QYT:1
RET0035 (RETAINER) - QTY:1
SHA0084 (SHAFT) - QTY:1
SLI0006 (SLINGER) - QTY:1
MCSSET0014 (MECHANICAL SEAL SET) - QTY:1
WER0019 (WEAR PLATE) - QTY:1
​
JMP Marine Engine Cooling Pump: #JPR-S7619
#JPR-S7619 Replaces John Deere Pump P/N: RE45458
#JPR-S7619 Replaces Sherwood P/N(s): P1719 (Old P1711), P1719-01, P1719F-01, P1719X
#JPR-S7619 good for Engine Models: 6067AFM, 6067AFM30, 6125AFM01, 6068SFM50, 6081AFM01, 6081AFM75, 6081AFH75, 6081HFH70
#JSK0080 JMP Marine
John Deere Engine Cooling Seawater Pump Major Service Kit for JPR-C1100
Please Note:
#JSK0080 parts are fully compatible to genuine and can be used to service both JMP Marine pump JPR-C1100 along with Genuine OEM pumps!
​
Replacement / Compatible to Major Kit P/N: ​
-
John Deere Major Kit P/N: DZ108626
-
Cummins Major Kit P/N: 4930629
-
Sherwood Major Kit P/N: 25045
​
Kit Includes (All Internal Parts):
8359-01 (FLEXIBLE IMPELLER) - QTY:1
CAMSET0032 (CAM SET) - QTY:1
PIN0007 (CAM PIN) - QTY:1
MCSSET0019 (MECHANICAL SEAL SET) - QTY:1
SHA0093 (SHAFT) - QTY:1
ORG0055 (O-RING) - QTY:1
ORG0054 (O-RING) - QTY:1
RET0042 (OIL SEAL) - QTY:1
COV0041 (BEARING COVER) - QTY:1
BER0052 (BEARING) - QTY:2
WER0020 (WEAR PLATE) - QTY:1
COV0038 (END COVER) - QTY:1
SNP0013 (SNAP RING) - QTY:1
BOL0036 (SPRING WASHER) - QTY:5
BOL0007 (END COVER BOLT) - QTY:5
​
Approx Total Weight: 11.0 lbs / 5.0 kgs
​
JMP Marine Engine Cooling Pump: #JPR-JD60IF2
#JPR-JD60IF2 Replaces John Deere Pump P/N: DZ108620
#JPR-JD60IF2 Replaces Sherwood P/N: G2910X
#JPR-JD60IF2 good for Engine Models: 6135AFM75, 6135AFM85, 6135SFM85
​
JMP Marine Engine Cooling Pump: #JPR-C1100
#JPR-C1100 Replaces Cummins Pump P/N(s): 3349392, 4929178, 5260393
#JPR-C1100 Replaces Sherwood P/N(s): G2903X, G2903-01, G2903-02
#JPR-C1100 good for Engine Models: QSM11
#JSK0133 JMP Marine
John Deere Engine Cooling Seawater Pump Major Service Kit for JPR-S7633
Please Note:
Major Kit #JSK0133 can be used Only for pump JPR-S7633; Cannot be used in Genuine Pumps other than JMP Marine Pumps.
WHY: Internal changes made to pump parts for better quality and performance.
​
Kit Includes (All Internal Parts):
7608-01 (FLEXIBLE IMPELLER) - QTY:1
BER0039 (BEARING) - QTY:2
BOL0006 (HEX BOLT) - QTY:3
BOL0036 (SPRING WASHER) - QTY:3
BOL0037 (SPRING WASHER) - QTY:4
BOL0059 (HEX BOLT) - QTY:4
CAMSET0031 (CAM SET) - QTY:1
BOL0103 (SPRING WASHER) - QTY:1
BOL0193 (HEX NUT) - QTY:1
COV0036 (END COVER) - QTY:1
ORG0030 (O-RING, END COVER) - QTY:1
KEY0031 (KEY) - QTY:1
MCSSET0014 (MECHANICAL SEAL SET) - QTY:1
RET0055 (RETAINER) - QTY:1
SHA0145 (SHAFT) - QTY:1
SLI0006 (SLINGER) - QTY:1
SNP000301 (SNAP RING) - QTY:1
SPC0015 (SPACER) - QTY:1
SPC0034 (SPACER) - QTY:1
WER0019 (WEAR PLATE) - QTY:1
​
JMP Marine Engine Cooling Pump: #JPR-S7633
#JPR-S7633 Replaces John Deere Pump P/N(s): RE515657, DZ114700 (old RE517226, RE540399)
#JPR-S7633 Replaces Sherwood P/N(s): P1733X, P1733F-01
#JPR-S7633 good for Engine Models: 6068SFM50
#JSK0073 JMP Marine
Northern Lights Engine Cooling Seawater Pump Major Service Kit for JPR-NL10IP
Please Note:
Major Kit #JSK0073 used Only for pump #JPR-NL10IP; Cannot be used in Genuine Northern Lights Pump.
WHY: Internal changes made to pump parts for better quality and performance.
​
Kit Includes (All Internal Parts):
7100-01 (FLEXIBLE IMPELLER) - QTY:1
BER0050 (BEARING) - QTY:2
BOL0039 (SPRING WASHER) - QTY:1
BOL0080 (SCREW) - QTY:6
BOL001801 (NUT) - QTY:1
CAMSET0033 (CAM) - QTY:1
COV0003 (COVER PLATE) - QTY:1
MCSSET0008 (MECHANICAL SEAL) - QTY:1
ORG0013 (O-RING) - QTY:1
ORG0044 (O-RING) - QTY:1
RET0038 (OIL SEAL) - QTY:1
SHA0085 (SHAFT) - QTY:1
SNP0006 (SNAP RING) - QTY:1
SNP0009 (SNAP RING) - QTY:1
WER0006 (WEAR PLATE) - QTY:1
​
JMP Marine Engine Cooling Pump: #JPR-NL10IP
#JPR-NL10IP Replaces Northern Lights Pump P/N: 25-12057
#JPR-NL10IP Replaces Jabsco P/N: 30410-9001
#JPR-NL10IP good for Engine Models: M753G, M753K, M753W, M753K2, M753W2, M773LK, M773LW, M773LW2, M843JK, M843JW, M843N, M843NK, M843NW, M843NK2, M843NW2, M844, M844K, M844K2, M844W2, M844L, M844LK, M844LK2, M844LW2
#JSK0028 JMP Marine
Scania Engine Cooling Seawater Pump Major Service Kit for JPR-SC50IF
Please Note:
Major Kit #JSK0028 used Only for pump #JPR-SC50IF; Cannot be used in Genuine Scania Pump.
WHY: Internal changes made to pump parts for better quality and performance.
​
Kit Includes (All Internal Parts):
8301-01 (FLEXIBLE IMPELLER) - QTY:1
BER0011 (BEARING) - QTY:1
BOL0081 (SCREWS) - QTY:5
CAMSET0016 (CAM SET) - QTY:1
COV0005 (COVER PLATE) - QTY:1
MCSSET0003 (MECHANICAL SEAL) - QTY:1
ORG0015 (O-RING) - QTY:1
RET001201 (RETAINER) - QTY:1
SLI0003 (SLINGER) - QTY:1
SNP0005 (SNAP RING) - QTY:1
SNP0014 (SNAP RING) - QTY:1
SHA0083 (SHAFT) - QTY:1
WER0003 (WEAR PLATE) - QTY:1
​
JMP Marine Engine Cooling Pump: #JPR-SC50IF
#JPR-SC50IF Replaces Scania Pump P/N: 31785018
#JPR-SC50IF Replaces Johnson P/N: 10-24308-02
#JPR-SC50IF good for Engine Models: DI09, DI12, DI13, DI16 Series
#JSK0091 JMP Marine
Volvo Penta Engine Cooling Seawater Pump Major Service Kit for VP0010DA
Please Note:
Major Kit #JSK0091 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes (All Internal Parts):
7051-01 (FLEXIBLE IMPELLER) - QTY:1
BOL0144 (HEX SCREW) - QTY:6
CAMSET0034 (CAM SET) - QTY:1
COV0048 (END COVER) - QTY:1
GAK0052 (END COVER GASKET) - QTY:1
RET0048 (RETAINER) - QTY:2
BER0048 (BEARING) - QTY:2
ORG0053 (O-RING, SLINGER) -QTY:1
ORG0056 (O-RING, MOUNTING) - QTY:1
SHA0107 (SHAFT) - QTY:1
SNP0024 (LARGE SNAP-RING) - QTY:1
SNP0027 (SMALL SNAP-RING) - QTY:1
SPC0027 (SPACER SLEEVE) - QTY:1
SPC0029 (SPACER WASHER) - QTY:1
​
Approx Total Weight: 1.30 lbs / 0.60 kgs
​
JMP Marine Engine Cooling Pump: #JPR-VP0010DA
#JPR-VP0010DA Replaces Volvo Penta Pump P/N: 3593654
#JPR-VP0010DA Replaces Johnson P/N: 10-24751-01
#JPR-VP0010DA good for D1 Series Engine Models: D1-13A/B/F, D1-20A/B/F
MD2010A, MD2010B, MD2010-C, MD2020A, MD2020B, MD2010-D, MD2020-C, MD2020-D, 120S-D, 120S-E, MS2B-R, MS2A-D, MS2A-E, MS2L-D, MS2L-E
#JSK0092 JMP Marine
Volvo Penta Engine Cooling Seawater Pump Major Service Kit for VP0010DB
Please Note:
Major Kit #JSK0092 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes (All Internal Parts):
7051-01 (FLEXIBLE IMPELLER) - QTY:1
BOL0144 (HEX SCREW) - QTY:6
CAMSET0034 (CAM SET) - QTY:1
COV0048 (END COVER) - QTY:1
GAK0052 (END COVER GASKET) - QTY:1
RET0048 (RETAINER) - QTY:2
BER0048 (BEARING) - QTY:2
ORG0053 (O-RING, SLINGER) -QTY:1
ORG0056 (O-RING, MOUNTING) - QTY:1
SHA0108 (SHAFT) - QTY:1
SNP0024 (LARGE SNAP-RING) - QTY:1
SNP0027 (SMALL SNAP-RING) - QTY:1
SPC0027 (SPACER SLEEVE) - QTY:1
SPC0029 (SPACER WASHER) - QTY:1
​
Approx Total Weight: 1.30 lbs / 0.60 kgs
​
JMP Marine Engine Cooling Pump: #JPR-VP0010DB
#JPR-VP0010DB Replaces Volvo Penta Pump P/N: 3593654
#JPR-VP0010DB Replaces Johnson P/N(s): 3593655, 3580945
#JPR-VP0010DB Replaces Jabsco P/N: 29450-1231
#JPR-VP0010DB good for D1/D2 Series Engine Models: D1-13A/B/F, D2-40A/B/F
MD2030A, MD2030B, MD2030-C, MD2030-D, MD2040A, MD2040B, MD2040-C, MD2040-D

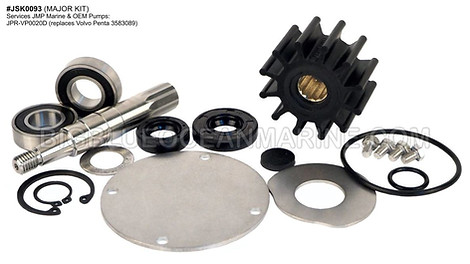

#JSK0093 JMP Marine
Volvo Penta Engine Cooling Seawater Pump Major Service Kit for VP0020D
Please Note:
Major Kit #JSK0093 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes (All Internal Parts):
7100-01 (FLEXIBLE IMPELLER) - QTY:1
BER0046 (BEARING) - QTY:2
BOL0163 (HEX SCREW) - QTY:4
BOL0164 (PLATE WASHER) - QTY:1
COV0049 (END COVER) - QTY:1
ORG0044 (O-RING) - QTY:1
ORG0061 (O-RING, END COVER) - QTY:1
RET0013 (RETAINER) - QTY:1
RET0049 (RETAINER) - QTY:1
SHA0109 (SHAFT) - QTY:1
SNP0002 (SMALL SNAP-RING) - QTY:1
SNP0022 (LARGE SNAP-RING) - QTY:1
WER0024 (WEAR PLATE) - QTY:1
​
Approx Total Weight: 1.80 lbs / 0.82 kgs
​
JMP Marine Engine Cooling Pump: #JPR-VP0020D
#JPR-VP0020D Replaces Volvo Penta Pump P/N: 3583089
#JPR-VP0020D Replaces Johnson P/N(s): 3593655, 3580945
#JPR-VP0020D good for D2 Series Engine Models: D2-55A/B/C/D/E/F, D2-75A/B/C/F
#JSK0094 JMP Marine
Volvo Penta Engine Cooling Seawater Pump Major Service Kit for VP0030DA
Please Note:
Major Kit #JSK0094 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes (All Internal Parts):
7136-01 (FLEXIBLE IMPELLER) - QTY:1
COV0049 (END COVER) - QTY:1
BOL0163 (HEX SCREW, END COVER) - QTY:4
ORG0061 (END COVER O-RING) - QTY:1
RET0013 (RETAINER) - QTY:1
BER0039 (BEARING) - QTY:1
BER0045 (BEARING) -QTY:1
BRK0006 (BRACKET, PLATE) - QTY:1
ORG0062 (V-RING, SLINGER) - QTY:1
SHA0112 (SHAFT) - QTY:1
​
Approx Total Weight: 2.75 lbs / 1.25 kgs
​
JMP Marine Engine Cooling Pump: #JPR-VP0030DA
#JPR-VP0030DA Replaces Volvo Penta Pump P/N: 21141637
#JPR-VP0030DA good for D3 Series Engine Models: D3-110I, D3-130A/I, D3-160A/I, D3-190A/I, D3-110I-A, D3-130A-A, D3-130I-A, D3-160A-A, D3-160I-A
#JSK0102 JMP Marine
Volvo Penta Engine Cooling Seawater Pump Major Service Kit for VP0060DA
Please Note:
Major Kit #JSK0102 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes (All Internal Parts):
7446-01 (FLEXIBLE IMPELLER) - QTY:1
BER0052 (BEARING) - QTY:2
BOL0081 (HEX SCREW, END COVER) - QTY:6
CAMSET0037 (CAM SET - Screw, Cam, O-ring) - QTY:1
ORG0071 (O-RING, END COVER) - QTY:1
KEY0032 (KEY, WOODRUFF) - QTY:1
MCSSET0023 (MECHANICAL SEAL SET) - QTY:1
NIP0014 (PLUG, DRAIN) - QTY:1
PBC0218 (END COVER) - QTY:1
PIN0001 (PIN, WEAR PLATE) - QTY:1
SHA0125 (SHAFT) - QTY:1
SNP0004 (SNAP-RING, PULLEY) - QTY:1
SNP0006 (SNAP-RING) - QTY:1
SNP0013 (SNAP-RING, LARGE) - QTY:1
SPC0019 (SPACER, WASHER) - QTY:1
WER0029 (WEAR PLATE) - QTY:1
​
Approx Total Weight: 7.05 lbs / 3.20 kgs
​
JMP Marine Engine Cooling Pump: #JPR-VP0060DA
#JPR-VP0060DA Replaces Volvo Penta Pump P/N(s): 21380890, 3589907
#JPR-VP0060DA Replaces Jabsco Pump P/N: 50394-8300
#JPR-VP0060DA good for D6 Series Engine Models: D6-280A, D6-310A, D6-310D, D6-330A, D6-330D, D6-350A, D6-370A, D6-370D, D6-435D
#JSK0104 JMP Marine
Volvo Penta Engine Cooling Seawater Pump Major Service Kit for VP0090D
Please Note:
Major Kit #JSK0104 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes (All Internal Parts):
​7446-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0067 (O-RING, END COVER) - QTY:1
COV0047 (END COVER PLATE) - QTY:1
BOL0080 (HEX SCREW, END COVER - QTY:4
CAMSET0036 (CAM SET) - QTY:1
MCSSET0023 (MECHANICAL SEAL) - QTY:1
PIN0001 (PIN, WEAR PLATE) - QTY:1
SNP0006 (SNAP-RING, MECHANICAL SEAL) - QTY:1
SPC0019 (SPACER, WASHER) - QTY:1
WER0029 (WEAR PLATE) - QTY:1
BER0059 (BEARING) - QTY:1
BOL0160 (NUT) - QTY:1
BOL0161 (SPRING WASHER) - QTY:1
BOL0175 (BOLT) - QTY:2
BOL0064 (SPRING WASHER) - QTY:2
NIP0014 (PLUG) - QTY:1
ORG0059 (O-RING, MOUNTING INNER) - QTY:1
ORG0070 (O-RING, MOUNTING OUTER) - QTY:1
RET0051 (RETAINER) - QTY:1
SHA0120 (SHAFT) - QTY:1
SNP0005 (SNAP-RING, SMALL) - QTY:1
SNP0014 (SNAP-RING, LARGE) - QTY:1
​
Approx Total Weight: 5.50 lbs / 2.50 kgs
​
JMP Marine Engine Cooling Pump: #JPR-VP0090D
#JPR-VP0090D Replaces Volvo Penta Pump P/N(s): 21380886, 3819485
#JPR-VP0060DA good for D9 / D11 Series Engine Models: D9A2A D9-425, D9-500, D9-500 (R4), D9-575, D9A2B D9-425, D9-500 (R5), D9A2A D9A-MH, D9A2B D9-575, D9A2A MH, D9A2B MH, D9A2C D9A-MH, D9-425, D9A2D D9-500 (R5), D9A2E D9-425, D9A2F D9-575, D9A2A MP, D9A2B MP, D9A2C, D9A2D, D9A2E, D9A2F, D9A2G, D9A2H, D9A2J, D9A-J, D9A-K, D9A2K, D9A2K D9-575, D11A-A, D11A-B, D11A-C, D11A-D, D11A-C (IPS), 11A-D (IPS), D11A-E, D11A-E (IPS)
#JSK0089 JMP Marine
Westerbeke Engine Cooling Seawater Pump Major Service Kit for JPR-WB08IP
Please Note:
Major Kit #JSK0089 used Only for JMP Marine pump #JPR-WB08IP; Cannot be used in Genuine Westerbeke Pump.
WHY: Internal changes made to pump parts for better quality and performance.
​
Kit Includes (All Internal Parts):
7050-01 (FLEXIBLE IMPELLER) - QTY:1
BER0048 (BEARING) - QTY:2
ORG0053 (O-RING) - QTY:1
RET0045 (OIL SEAL, RETAINER) - QTY:1
SHA0099 (SHAFT) - QTY:1
SNP0024 (SNAP-RING, LARGE) - QTY:1
MCSSET0020 (MECHANICAL SEAL SET) - QTY:1
ORG0052 (END COVER O-RING) - QTY:1
COV0042 (END COVER) - QTY:1
BOL0144 (END COVER SCREWS) - QTY:6
SNP0026 (SNAP-RING SMALL) - QTY:2
WER0023 (WEAR PLATE) - QTY:1
​
JMP Marine Engine Cooling Pump: #JPR-WB08IP
#JPR-WB08IP Replaces Westerbeke Pump P/N(s): 48080, 37431, 33636
#JPR-WB08IP Replaces Johnson P/N: 10-36006
#JPR-WB08IP good for Engine Models: 4.0/4.4/6.0BCD, 4.4/7.7/8.0/11.0WMD, 20B Two, 30B3 Three
#JSK0129 JMP Marine
Yanmar Engine Cooling Seawater Pump Major Service Kit for
JPR-YM06LPA, JPR-YM06LPB
Please Note:
Major Kit #JSK0129 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes (All Internal Parts):
7136-01 (FLEXIBLE IMPELLER) - QTY:1
BER0031 (BEARING) - QTY:2
CAMSET0042 (CAM SET) - QTY:1
GAK0067 (GASKET, PORT HOUSING) - QTY:1
KEY0013 (WOODRUFF KEY, GEAR) - QTY:1
ORG0061 (END COVER O-RING) - QTY:1
ORG0044 (O-RING, SLINGER) - QTY:1
ORG0006 (O-RING, MOUNTING) - QYT:1
COV0050 (END COVER) - QTY:1
BOL0163 (END COVER SCREWS) - QTY:4
BOL0129 (WASHER, GEAR) - QTY:1
BOL001901 (NUT, GEAR) - QTY:1
SHA0133 (SHAFT) - QTY:1
SNP0003 (SNAP-RING) - QTY:1
SNP0017 (SNAP-RING) - QTY:1
SPC0032 (SPACER WASHER) - QTY:1
RET0013 (RETAINER) - QTY:2
​
Approx Total Weight: 1.75 lbs / 0.80 kgs
​
JMP Marine Engine Cooling Pump: #JPR-YM06LPA
#JPR-YM06LPA Replaces Yanmar Pump P/N: 119773-42502
#JPR-YM06LPA Replaces Johnson P/N: 10-24493-02
#JPR-YM06LPA good for Engine Models: 6LP(A)-DTE(P), 6LP(A)-STE(P), 6LPA-STP2
​
JMP Marine Engine Cooling Pump: #JPR-YM06LPB
#JPR-YM06LPB Replaces Yanmar Pump P/N: 119773-42652 (replaces 119773-42650)
#JPR-YM06LPB Replaces Johnson P/N: 10-24493-01
#JPR-YM06LPB good for Engine Models: 6LP(A)-DTE(P), 6LP(A)-STE(P), 6LPA-STP2, 6LP(A)-DTZE(P), 6LP(A)-STZE(P), 6LPA-STZP2(3)
#JSK0130 JMP Marine
Yanmar Engine Cooling Seawater Pump Major Service Kit for
JPR-YM04JHA, JPR-YM04JHB
Please Note:
Major Kit #JSK0130 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes (All Internal Parts):
7100-01 (FLEXIBLE IMPELLER) - QTY:1
BOL0163 (END COVER SCREWS) - QTY:4
BOL0164 (FLAT WASHER) - QTY:1
COV0050 (END COVER) - QTY:1
MCSSET0001 (MECHANICAL SEAL SET) - QTY:1
ORG0061 (END COVER O-RING) - QTY:1
ORG0062 (V-RING) - QTY:1
SNP0006 (SNAP-RING) - QTY:1
WER0024 (WEAR PLATE) - QTY:1
BER0050 (BEARING) - QTY:2
BOL0186 (FLANGE NUT) - QTY:1
KEY0028 (KEY) - QTY:1
RET0013 (RETAINER) - QTY:1
SHA0134 (SHAFT) - QTY:1
SNP0002 (SNAP-RING) - QTY:1
SNP0009 (SNAP-RING) - QTY:1
​
Approx Total Weight: 3.0 lbs / 1.40 kgs
​
JMP Marine Engine Cooling Pump: #JPR-YM04JHA
#JPR-YM04JHA Replaces Yanmar Pump P/N: 129670-42513 (Replaces: 129670-42500, 129670-42501, 129670-42510, 129670-42511, 129670-42512)
#JPR-YM04JHA Replaces Johnson P/N(s): 10-13328-04, 10-13328-02
#JPR-YM04JHA good for Engine Model Series 3JH3, 4JH3, 4JH4: 4JH3-THE, 4JH3-DTE, 4JH3E, 4JH3CE, 4JH3CE1, 4JH3-TE, 4JH3-TCE, 3JH3E, 3JH3E(EPA), 3JH3CE, 4JH3-TE-YEU, 4JH3-DTE(YEU), 3JH3E-YEU-E, 4JH4-TE, 4JH4-THE, 4JH4-HTE1
​
JMP Marine Engine Cooling Pump: #JPR-YM04JHB
#JPR-YM04JHB Replaces Yanmar Pump P/N: 129271-42502 (Replaces: 129271-42500, 129271-42501)
#JPR-YM04JHB Replaces Johnson P/N(s): 10-13328-01, 10-13328-03
#JPR-YM04JHB good for Engine Model Series 3JH4, 3JH5, 4JH5: 4JH5E, 3JH4E, 4JH4E, 4JH4AE, 3JH5E, 4JH45, 4JH57, 4JH80, 4JH110
#JSM0002 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-S7608, JPR-S7619, JPR-S7627, JPR-S7630, JPR-S7632, JPR-S7633
Please Note:
JSM0002 used ONLY for pumps #JPR-S7608, #JPR-S7619, #JPR-S7627, #JPR-S7630, #JPR-S7632, #JPR-S7633; Cannot be used in Genuine OEM Pumps. Internal changes made to pump parts for better quality and performance vs OEM.
​
Kit Includes:
7608-01 (FLEXIBLE IMPELLER) - QTY:1
MCSSET0014 (MECHANICAL SEAL SET) - QTY:1
ORG0030 (END COVER O-RING) - QTY:1
COV0036 (END COVER) - QTY:1
BOL0006 (END COVER SCREWS) - QTY:3
BOL0036 (SPRING WASHERS) - QTY:3
CAMSET0031 (CAM SET) - QTY:1
WER0019 (WEAR PLATE) - QTY:1
​
JMP Marine Engine Cooling Seawater Pump: #JPR-S7632
Replaces Caterpillar Pump P/N: 4P7168, 4P-7168, 1131109, 113-1109, 1528392, 152-8392, 1674252, 167-4252, 1706116, 170-6116
Replaces Sherwood P/N: P1710, P1710-01, P1710-02, P1710-04, P1710A, P1710C, P1710X, P1726, P1726X, P1732-01, P1732-02, P1732A, P1732C, P1732X
Engine Models: 3116, 3126, 3126B, C7, C9
#JSM0005 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-CT3406, JPR-CT3530
Please Note:
Minor Kit #JSM0005 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest quality grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Replacement for OEM Minor Kit P/N(s):
-
Detroit Diesel Minor Kit P/N: 8927567
​
Kit Includes:
8300-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0008 (END COVER GASKET) - QTY:1
COV0011 (END COVER) - QTY:1
BOL0005 (END COVER SCREWS) - QTY:6
CAMSET0018 (CAM LINER) - QTY:1
MCSSET0007 (MECHANICAL SEAL SET) - QTY:1
PIN0002 (PIN) - QTY:2
SNP0008 (SNAP RING, SMALL) - QTY:1
WER0010 (WEAR PLATE) - QTY:2
​
Approx Total Weight: 8.50 lb / 3.90 kg
​
JMP Marine Engine Cooling Pump: #JPR-CT3406
Replaces Caterpillar Pump P/N: 3N-4851, 3N4851, 3N-4852, 3N4852, 5N-4852, 5N4852
Replaces Jabsco P/N: 17970-0100 (replaces 17970-0000)
Engine Models: 3406, 3406B, 3406C
All Parts Internally Compatible to Genuine: YES
​
JMP Marine Engine Cooling Pump: #JPR-CT3530 (also known as JPR-CT353)
Replaces Caterpillar Pump P/N: 3N-1888, 3N1888
Replaces Jabsco P/N: 17360-1001
Engine Models: D336, D343, D353 C/D/E
All Parts Internally Compatible to Genuine: YES
#JSM0007 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-CT3306
Please Note:
Minor Kit #JSM0007 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest quality grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes:
8300-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0008 (END COVER GASKET) - QTY:1
COV0011 (END COVER) - QTY:1
BOL0005 (END COVER SCREWS) - QTY:6
CAMSET0018 (CAM LINER) - QTY:1
MCSSET0007 (MECHANICAL SEAL SET) - QTY:1
PIN0002 (PIN) - QTY:2
SNP0008 (SNAP RING, SMALL) - QTY:1
WER0010 (WEAR PLATE) - QTY:2
​
Approx Total Weight: 3.30 lb / 1.50 kg
​
JMP Marine Engine Cooling Pump: #JPR-CT3306
Replaces Caterpillar Pump P/N: 5N-9357, 5N9357
Replaces Jabsco P/N: 17810-1000, 17810-1300
Engine Models: 3304, 3304B, 3306, 3306B, D330C​
#JSM0138 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-CT1200R
Please Note:
Minor Kit #JSM0138 is fully compatible to OEM; JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Replacement for OEM Minor Kit P/N(s):
-
Sherwood Minor Kit P/N: 25146
Kit Includes:
8359-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0043 (QUAD RING) - QTY:2
COV0038 (END COVER PLATE) - QTY:1
CAMSET003201 (CAM SET) - QTY:1
MCSSET0027 ((MECHANICAL SEAL SET) - QTY:1
WER0020 (WEAR PLATE) - QTY:1
BOL0006 (HEX BOLT, END COVER) - QTY:5
BOL0036 (SPRING WASHER, END COVER) - QTY:5
SNP0008 (SNAP RING) - QTY:1
SPC0012 (SPACER, SHIM) - QTY:1
​
Approx Total Weight: 7.0 lb / 3.20 kg
​
JMP Marine Engine Cooling Pump: #JPR-CT1200R
Replaces Caterpillar Pump P/N: 359-6661, 3596661
Replaces Sherwood P/N: G2904X
Engine Models: C12
All Parts Internally Compatible to Genuine: YES
#JSM0139 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-CT1800R
Please Note:
Minor Kit #JSM0139 is fully compatible to OEM; JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Replacement for OEM Minor Kit P/N(s):
-
Caterpillar Minor Kit P/N: 284-5562, 2845562
Kit Includes:
8359-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0043 (QUAD RING) - QTY:2
COV0038 (END COVER PLATE) - QTY:1
CAMSET0032 (CAM SET) - QTY:1
MCSSET0027 (MECHANICAL SEAL SET) - QTY:1
WER0020 (WEAR PLATE) - QTY:1
BOL0006 (HEX BOLT, END COVER) - QTY:5
BOL0036 (SPRING WASHER, END COVER) - QTY:5
SNP0008 (SNAP RING) - QTY:1
SPC0012 (SPACER, SHIM) - QTY:1
​
Approx Total Weight: 7.0 lb / 3.20 kg
​
JMP Marine Engine Cooling Pump: #JPR-CT1800R
Replaces Caterpillar Pump P/N: 375-4703, 3754703
Replaces Sherwood P/N: G2902X, G2902-01
Engine Models: C18
All Parts Internally Compatible to Genuine: YES
#JSM0140 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-CT3200R
Please Note:
Minor Kit #JSM0140 is fully compatible to OEM; JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Replacement for OEM Minor Kit P/N(s):
-
Caterpillar Minor Kit P/N: 304-7615, 3047615
-
Sherwood Minor Kit P/N: 25017
Kit Includes:
8459-01 (FLEXIBLE IMPELLER) - QTY:1
BOL0007 (HEX BOLT, END COVER) - QTY:5
BOL0036 (SPRING WASHER, END COVER) - QTY:5
CAMSET0043 (CAM SET) - QTY:1
COV0057 (END COVER) - QTY:1
MCSSET0029 (MECHANICAL SEAL SET) - QTY:1
ORG0080 (QUAD RING) - QTY:1
SNP0028 (SNAP RING) - QTY:1
WER0030 (WEAR PLATE) - QTY:1
​
Approx Total Weight: 7.0 lb / 3.20 kg
​
JMP Marine Engine Cooling Pump: #JPR-CT3200R
Replaces Caterpillar Pump P/N: 322-8594, 3228594
Replaces Sherwood P/N: G3001X
Engine Models: C32
All Parts Internally Compatible to Genuine: YES
#JSM0143 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-CT0440
Please Note:
Minor Kit #JSM0143 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps (See note regarding mechanical seal set when servicing OEM pumps). JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes:
7400-01 (FLEXIBLE IMPELLER) - QTY:1
CAMSET0039 (CAM SET) - QTY:1
BOL0080 (END COVER SCREWS) - QTY:4
MCSSET0008 (MECHANICAL SEAL SET) - QTY:1
Note: MCSSET0008 can only be used to service JMP Marine pump JPR-CT0440. If using kit JSK0143 or JSM0143 to service OEM pump you MUST use original CAT mechanical seal p/n 4204328 in place of MCSSET0008.
Why? JMP Marine Seal is thicker vs OEM Seal.
COV0047 (END COVER PLATE) - QTY:1
ORG0067 (O-RING, END COVER) - QTY:1
ORG0044 (O-RING, SLINGER) - QTY:1
ORG0057 (O-RING, MOUNTING) - QTY:1
SNP0006 (SNAP RING, SMALL) - QTY:1
SPC0019 (SPACER) - QTY: 1
WER0029 (WEAR PLATE) - QTY:1
​
Approx Total Weight: 2.0 lb / 1.0 kg
​
JMP Marine Engine Cooling Pump: #JPR-CT0440
Replaces Caterpillar Pump P/N: 4255412, 425-5412
Replaces Jabsco Pump P/N: 29630-1101
Note: You must confirm that your pump drive gear setup has same number of teeth being 33 which would then match with JPR-CT0440​
Engine Models: C4.4​
#JSM0002 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-S7608, JPR-S7619, JPR-S7627, JPR-S7630, JPR-S7632, JPR-S7633
Please Note:
JSM0002 used ONLY for pump(s): JPR-S7608, JPR-S7619, JPR-S7627, JPR-S7630, JPR-S7632, JPR-S7633; Cannot be used in Genuine OEM Pumps. Internal changes made to pump parts for better quality and performance vs OEM.
​
Kit Includes:
7608-01 (FLEXIBLE IMPELLER) - QTY:1
MCSSET0014 (MECHANICAL SEAL SET) - QTY:1
ORG0030 (END COVER O-RING) - QTY:1
COV0036 (END COVER) - QTY:1
BOL0006 (END COVER SCREWS) - QTY:3
BOL0036 (SPRING WASHERS) - QTY:3
CAMSET0031 (CAM SET) - QTY:1
WER0019 (WEAR PLATE) - QTY:1
​
JMP Marine Engine Cooling Seawater Pump:
JPR-S7608, JPR-S7627, JPR-S7630 (Replacement pumps for Cummins)
#JSM0022 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-C1905
Please Note:
Minor Kit #JSM0022 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest quality grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Replaces / Compatible to Kit Part Numbers:
-
Cummins Minor Kit P/N: 3897386
​
Kit Includes:
8300-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0008 (END COVER GASKET) - QTY:1
COV0011 (END COVER) - QTY:1
BOL0005 (END COVER SCREWS) - QTY:6
CAMSET0018 (CAM LINER) - QTY:1
MCSSET0007 (MECHANICAL SEAL SET) - QTY:1
PIN0002 (PIN) - QTY:2
SNP0008 (SNAP RING, SMALL) - QTY:1
WER0010 (WEAR PLATE) - QTY:2
​
Approx Total Weight: 3.30 lb / 1.50 kg
​
​JMP Marine Engine Cooling Pump: #JPR-C1905
Replaces Cummins Pump P/N: 3866609
Replaces Jabsco P/N: 18770-0003
#JSM0004 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-G6500, JPR-G6400
Please Note:
Minor Kit #JSM0004 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest quality grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes:
9000-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0047 (O-RING, END COVER) - QTY:1
COV001201 (END COVER) - QTY:1
BOL010501 (HEX BOLT, END COVER) - QTY:4
BOL0035 (SPRING WASHER, END COVER BOLT) - QTY:4
CAMSET0019 (CAM LINER, BRONZE/ALUMINUM) - QTY:1
MCSSET0007 (MECHANICAL SEAL SET) - QTY:1
WER0011 (WEAR PLATE) - QTY:1
​
Approx Total Weight: 11.0 lb / 5.0 kg
​
JMP Marine Engine Cooling Pump: #JPR-G6500
Replaces Detroit Diesel Pump P/N: 23525200, 23522735, 23535447
Replaces Jabsco P/N: 17540-0001, 17540-0201
Engine Models: Series 60
All Parts Internally Compatible to Genuine: YES
​
JMP Marine Engine Cooling Pump: #JPR-G6400
Replaces Detroit Diesel Pump P/N: 23525078, 8927296
Replaces Jabsco P/N: 18780-0001
Engine Models: 12V71TI, 12V92TA, 16V149TA, SERIES 149
All Parts Internally Compatible to Genuine: YES
#JSM0005 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-G6300
Please Note:
Minor Kit #JSM0005 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest quality grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Replacement for OEM Minor Kit P/N(s):
-
Detroit Diesel Minor Kit P/N: 8927567
​
Kit Includes:
8300-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0008 (END COVER GASKET) - QTY:1
COV0011 (END COVER) - QTY:1
BOL0005 (END COVER SCREWS) - QTY:6
CAMSET0018 (CAM LINER) - QTY:1
MCSSET0007 (MECHANICAL SEAL SET) - QTY:1
PIN0002 (PIN) - QTY:2
SNP0008 (SNAP RING, SMALL) - QTY:1
WER0010 (WEAR PLATE) - QTY:2
​
Approx Total Weight: 8.50 lb / 3.90 kg
​
JMP Marine Engine Cooling Pump: #JPR-G6300
Replaces Detroit Diesel Pump P/N: 23507973, 23507475, 23507476, 23507477, 23522698, 8923363
Replaces Jabsco P/N: 18760-Series, 18760-0001, 17367-8000
Engine Models: 8V71, 8V92TA, 8V92TI, 12V71, 16V92TA, Series 60
All Parts Internally Compatible to Genuine: YES
#JSM0028 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-G6000F, JPR-G6010F
Please Note:
Minor Kit #JSM0028 used Only for pump #JPR-G6000F & #JPR-G6010F; This kit cannot be used to service Genuine Detroit Diesel Pump other than the JMP Marine pumps.
WHY: Internal changes made to pump parts for better quality and performance.
​
Kit Includes:
7426-01 (FLEXIBLE IMPELLER) - QTY:1
MCSSET0008 (MECHANICAL SEAL SET) - QTY:1
CAMSET00301 (CAM SET) - QTY:1
GAK0016 (GASKET, END COVER) - QTY:1
COV001301 (END COVER) - QTY:1
BOL0080 (END COVER SCREWS) - QTY:6
WER0001 (WEAR PLATE) - QTY:1
​
JMP Marine Engine Cooling Pump: #JPR-G6000F
Replaces Detroit Diesel Pump P/N: 5145578, 5145576
Replaces Jabsco P/N: 17050-0001, 17030
Engine Models: 253, 353, 453, 471
​
JMP Marine Engine Cooling Pump: #JPR-G6010F
Replaces Detroit Diesel Pump P/N: 5145577
Replaces Jabsco P/N: 17040-0001, 5840-0000
Engine Models: 271
#JSM0024 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-JD25UH
Please Note:
Minor Kit #JSM0024 used Only for JMP Marine pump #JPR-JD25UH; Cannot be used in Genuine Pump Models.
WHY: Internal changes made to pump parts for better quality and performance for a longer lasting pump.
​
Kit Includes:
7400-01 (FLEXIBLE IMPELLER) - QTY:1
MCSSET0008 (MECHANICAL SEAL SET) - QTY:1
ORG0013 (END COVER O-RING) - QTY:1
COV0003 (END COVER) - QTY:1
BOL0080 (END COVER SCREWS) - QTY:6
WER0001 (WEAR PLATE) - QTY:1
CAMSET000301 (CAM SET) - QTY:1
SNP0006 (SNAP RING) - QTY:1
​
Approx Total Weight: 2.0 lb / 1.0 kg
​
JMP Marine Engine Cooling Pump: #JPR-JD25UH
Replaces John Deere Pump P/N: RE535944, RE503068
Replaces Johnson P/N: 10-21915-01
Replaces Onan P/N: 132-0435
Engine Models: 4045DFM50, 4045DFM70, 4045TFM50, 4045TFM75, 4045TFM85, 6068SFM50, 6068TFM50, 6068TFM75, 6068TFM76
Kohler Engine Models: 40E02/33EF02, 65E02/55EF02, 30E02/20EF02, 99E02/80LF02​
#JSM0002 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-S7608, JPR-S7619, JPR-S7627, JPR-S7630, JPR-S7632, JPR-S7633
Please Note:
JSM0002 used ONLY for pump(s): JPR-S7608, JPR-S7619, JPR-S7627, JPR-S7630, JPR-S7632, JPR-S7633; Cannot be used in Genuine OEM Pumps. Internal changes made to pump parts for better quality and performance vs OEM.
​
Kit Includes:
7608-01 (FLEXIBLE IMPELLER) - QTY:1
MCSSET0014 (MECHANICAL SEAL SET) - QTY:1
ORG0030 (END COVER O-RING) - QTY:1
COV0036 (END COVER) - QTY:1
BOL0006 (END COVER SCREWS) - QTY:3
BOL0036 (SPRING WASHERS) - QTY:3
CAMSET0031 (CAM SET) - QTY:1
WER0019 (WEAR PLATE) - QTY:1
​
JMP Marine Engine Cooling Seawater Pump:
JPR-S7619, JPR-S7633 (Replacement pumps for John Deere)
#JSM0033 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-SC50IF
Please Note:
Minor Kit #JSM0033 used Only for JMP Marine pump #JPR-SC50IF; Cannot be used in Genuine Pump Models.
WHY: Internal changes made to pump parts for better quality and performance for a longer lasting pump.
​
Kit Includes:
8301-01 (FLEXIBLE IMPELLER) - QTY:1
MCSSET0003 (MECHANICAL SEAL SET) - QTY:1
ORG0015 (END COVER O-RING) - QTY:1
COV0005 (END COVER) - QTY:1
BOL0081 (END COVER SCREWS) - QTY:5
WER0003 (WEAR PLATE) - QTY:1
CAMSET0016 (CAM SET) - QTY:1
​
Approx Total Weight: 3.50 lb / 1.60 kg
​
JMP Marine Engine Cooling Pump: #JPR-SC50IF
Replaces Scania Pump P/N: 1785018
Replaces Johnson P/N: 10-24308-02
Engine Models: DI09, DI12, DI13, DI16
#JSM0007 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-V2000
Please Note:
Minor Kit #JSM0007 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest quality grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes:
8300-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0008 (END COVER GASKET) - QTY:1
COV0011 (END COVER) - QTY:1
BOL0005 (END COVER SCREWS) - QTY:6
CAMSET0018 (CAM LINER) - QTY:1
MCSSET0007 (MECHANICAL SEAL SET) - QTY:1
PIN0002 (PIN) - QTY:2
SNP0008 (SNAP RING, SMALL) - QTY:1
WER0010 (WEAR PLATE) - QTY:2
​
Approx Total Weight: 3.30 lb / 1.50 kg
​
JMP Marine Engine Cooling Pump: #JPR-V2000
Replaces Volvo Penta Pump P/N: 822787, 3829311
Replaces Johnson P/N: 10-21915-01
Engine Models: TAMD61/62, TAMD71/72/73, MD100/120, TD100/120, TMD100/120, TAMD100/102/120
#JSM0032 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-V5000
Please Note:
Minor Kit used ONLY for the above mentioned JMP Marine brand engine cooling seawater pump(s) JPR-V5000. This kit cannot be used to service the Genuine Brand Pumps . . only JMP Marine Brand.
WHY? Internal changes made to pump parts for better quality and performance. Please see the pump(s) product page for more information regarding these internal changes.
​
Kit Includes:
8301-01 (FLEXIBLE IMPELLER) - QTY:1
MCSSET0006 (MECHANICAL SEAL SET) - QTY:1
ORG0015 (END COVER O-RING) - QTY:1
COV0005 (END COVER) - QTY:1
BOL0081 (END COVER SCREWS) - QTY:5
CAMSET0025 (CAM SET) - QTY:1
SNP0008 (SNAP RING) - QTY:1
WER0009 (WEAR PLATE) - QTY:1
​
Approx Total Weight: 4.0 lb / 1.82 kg
​
JMP Marine Engine Cooling Pump: #JPR-V5000
Replaces Volvo Penta Pump P/N: 3837935, 3825493
Replaces Johnson P/N: 10-13166-01
Replaces Onan P/N: 132-0435
Engine Models: TAMD162, TAMD163, TAMD165
#JSM0073 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-VP0010DB,
Please Note:
Minor Kit #JSM0073 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest quality grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes:
7051-01 (FLEXIBLE IMPELLER) - QTY:1
GAK0052 (END COVER GASKET) - QTY:1
COV0048 (END COVER) - QTY:1
BOL0144 (END COVER SCREWS) - QTY:6
RET0048 (RETAINER) - QTY:1
CAMSET0035 (CAM SET) - QTY:1
​
Approx Total Weight: 1.0 lb / 0.45 kg
​
JMP Marine Engine Cooling Pump: #JPR-VP0010DB
Replaces Volvo Penta Pump P/N: 3593655, 3580945
Replaces Johnson P/N: 10-24752-01, 10-24465-01
Replaces Jabsco P/N: 29450-1231
Engine Models: D1-13A/B/F, D2-40A/B/F,
MD2030A, MD2030B, MD2030-C, MD2030-D, MD2040A, MD2040B, MD2040-C, MD2040-D
Internally Compatible to Genuine: YES
#JSM0075 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-VP0030DA,
Please Note:
Minor Kit #JSM0075 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes:
7136-01 (FLEXIBLE IMPELLER) - QTY:1
COV0049 (END COVER) - QTY:1
BOL0163 (HEX SCREWS, END COVER) - QTY:4
ORG0061 (O-RING, END COVER) - QTY:1
RET0013 (RETAINER) - QTY:1
​
Approx Total Weight: 1.25 lb / 0.60 kg
​
JMP Marine Engine Cooling Pump: #JPR-VP0030DA
Replaces Volvo Penta Pump P/N: 21141637
D3 Series Engine Models: D3-110I, D3-130A/I, D3-160A/I, D3-190A/I, D3-110I-A, D3-130A-A, D3-130I-A, D3-160A-A, D3-160I-A
#JSM0077 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-VP0090D
Please Note:
Minor Kit #JSM0077 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes:
7446-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0067 (O-RING, END COVER) - QTY:1
COV0047 (END COVER PLATE) - QTY:1
BOL0080 (HEX SCREWS, END COVER) - QTY:4
CAMSET0036 (CAM SET) - QTY:1
MCSSET0023 (MECHANICAL SEAL) - QTY:1
SNP0006 (SNAP-RING, MECH SEAL) - QTY:1
SPC0019 (SPACER, WASHER) - QTY:1
WER0029 (WEAR PLATE) - QTY:1
​
Approx Total Weight: 2.25 lb / 1.0 kg
​
JMP Marine Engine Cooling Pump: #JPR-VP0090D
Replaces Volvo Penta Pump P/N: 21380886, 3819485
D9/D11 Series Engine Models: D9A2A D9-425, D9-500, D9-500 (R4), D9-575, D9A2B D9-425, D9-500 (R5), D9A2A D9A-MH, D9A2B D9-575, D9A2A MH, D9A2B MH, D9A2C D9A-MH, D9-425, D9A2D D9-500 (R5), D9A2E D9-425, D9A2F D9-575, D9A2A MP, D9A2B MP, D9A2C, D9A2D, D9A2E, D9A2F, D9A2G, D9A2H, D9A2J, D9A-J, D9A-K, D9A2K, D9A2K D9-575, D11A-A, D11A-B, D11A-C, D11A-D, D11A-C (IPS), 11A-D (IPS), D11A-E, D11A-E (IPS)
#JSM0081 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-VP0030DB
Please Note:
Minor Kit #JSM0081 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes:
7136-01 (FLEXIBLE IMPELLER) - QTY:1
BOL00164 (PLATE WASHER) - QTY:1
SNP0006 (SNAP-RING) - QTY:1
ORG0069 (O-RING) - QTY:1
MCSSET0016 (MECHANICAL SEAL SET) - QTY:1
​
Approx Total Weight: 1.0 lb / 0.45 kg
​
JMP Marine Engine Cooling Pump: #JPR-VP0030DB
Replaces Volvo Penta Pump P/N: 21379102
D3 Series Engine Models: D3-110I-G, D3-140A, D3140I, D3-150I-G, D3-170A-G, D3170I-G, D3-200A-G, D3200I-G, D3-220A-G, D3220I-G
#JSM0102 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-VP0060DA
Please Note:
Minor Kit #JSM0102 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes:
7446-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0071 (O-RING, END COVER) - QTY:1
BOL0081 (HEX SCREWS, END COVER) - QTY:6
CAMSET0037 (CAM SET - Screw, Cam, O-ring) - QTY:1
MCSSET0023 (MECHANICAL SEAL SET) - QTY:1
PBC0218 (END COVER) - QTY:1
SNP0006 (SNAP-RING) - QTY:1
SPC0019 (SPACER, WASHER) - QTY:1
WER0029 (WEAR PLATE) - QTY:1
​
Approx Total Weight: 3.50 lb / 1.60 kg
​
JMP Marine Engine Cooling Pump: #JPR-VP0060DA
Replaces Volvo Penta Pump P/N: 21380890, 3589907
Replaces Jabsco Pump P/N: 21380890, 3589907
D6 Series Engine Models: D6-280A, D6-310A, D6-310D, D6-330A, D6-330D, D6-350A, D6-370A, D6-370D, D6-435D
#JSM0089 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-WB08IP
Please Note:
Minor Kit #JSM0089 used Only for JMP Marine pump #JPR-WB08IP; Cannot be used in Genuine Westerbeke Pump.
WHY: Internal changes made to pump parts for better quality and performance.
​
Kit Includes:
7050-01 (FLEXIBLE IMPELLER) - QTY:1
MCSSET0020 (MECHANICAL SEAL SET) - QTY:1
ORG0052 (END COVER O-RING) - QTY:1
COV0042 (END COVER) - QTY:1
BOL0144 (END COVER SCREWS) - QTY:6
SNP0026 (SNAP-RING SMALL) - QTY:2
WER0023 (WEAR PLATE) - QTY:1
​
JMP Marine Engine Cooling Pump: #JPR-WB08IP
Replaces Westerbeke Pump P/N: 48080, 37431, 33636
Replaces Johnson Pump P/N: 10-36006
Engine Models: 4.0/4.4/6.0BCD, 4.4/7.7/8.0/11.0WMD, 20B Two, 30B3 Three
#JSM0091 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-YM08IH, JPR-YM08IH2
Please Note:
Minor Kit #JSM0091 used Only for JMP Marine pump(s) #JPR-YM08IH, JPR-YM08IH2; Cannot be used in Genuine Pump Models.
WHY: Internal changes made to pump parts for better quality and performance.
​
Kit Includes:
7050-01 (FLEXIBLE IMPELLER) - QTY:1
MCSSET0020 (MECHANICAL SEAL SET) - QTY:1
ORG0052 (END COVER O-RING) - QTY:1
COV0042 (END COVER) - QTY:1
BOL0144 (END COVER SCREWS) - QTY:6​
​
Approx Total Weight: 1.0 lb / 0.45 kg
​
JMP Marine Engine Cooling Pump: #JPR-YM08IH
Replaces Yanmar Pump P/N: 128397-42500, 128990-42500
Replaces Johnson Pump P/N: 10-24509-01, 10-13337-01
Engine Models: 2GMF, 3GMF, 2YM, 3YM
​
JMP Marine Engine Cooling Pump: #JPR-YM08IH2
Replaces Yanmar Pump P/N: 128377-42500
Replaces Johnson Pump P/N: 10-24509-02
Engine Models: 2GM, 3GM
#JSM0129 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-YM06LPA, JPR-YM06LPB
Please Note:
Minor Kit #JSM0129 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes:
7136-01 (FLEXIBLE IMPELLER) - QTY:1
CAMSET0042 (CAM SET) - QTY:1
ORG0061 (END COVER O-RING) - QTY:1
COV0050 (END COVER) - QTY:1
BOL0163 (END COVER SCREWS) - QTY:4
RET0013 (RETAINER, OIL SEAL) - QTY:1
​
Approx Total Weight: 1.25 lb / 0.57 kg
​
JMP Marine Engine Cooling Pump: #JPR-YM06LPA
Replaces Yanmar Pump P/N: 119773-42502
Replaces Johnson Pump P/N: 10-24493-02
6LP Series Engine Models: 6LP(A)-DTE(P), 6LP(A)-STE(P), 6LPA-STP2
​
JMP Marine Engine Cooling Pump: #JPR-YM06LPB
Replaces Yanmar Pump P/N: 119773-42652 (replaces 119773-42650)
Replaces Johnson Pump P/N: 10-24493-01
6LP Series Engine Models: 6LP(A)-DTE(P), 6LP(A)-STE(P), 6LPA-STP2, 6LP(A)-DTZE(P), 6LP(A)-STZE(P), 6LPA-STZP2(3)
#JSM0130 JMP Marine
Engine Cooling Seawater Pump Minor Service Kit for JPR-YM06LPA, JPR-YM06LPB
Please Note:
Minor Kit #JSM0130 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
​
Kit Includes:
7100-01 (FLEXIBLE IMPELLER) - QTY:1
BOL0163 (HEX SCREW, END COVER) - QTY:4
BOL0164 (FLAT WASHER) - QTY:1
COV0050 (END COVER) - QTY:1
MCSSET0001 (MECHANICAL SEAL SET) - QTY:1
ORG0061 (END COVER O-RING) - QTY:1
ORG0062 (V-RING) - QTY:1
SNP0006 (SNAP-RING) - QTY:1
WER0024 (WEAR PLATE) - QTY:1
​
Approx Total Weight: 1.0 lb / 0.50 kg
​
JMP Marine Engine Cooling Pump: #JPR-YM04JHA
Replaces Yanmar Pump P/N: 129670-42513 (Replaces: 129670-42500, 129670-42501, 129670-42510, 129670-42511, 129670-42512)
Replaces Johnson Pump P/N: 10-13328-04, 10-13328-02
3JH3, 4JH3, 4JH4 Series Engine Models: 4JH3-THE, 4JH3-DTE, 4JH3E, 4JH3CE, 4JH3CE1, 4JH3-TE, 4JH3-TCE, 3JH3E, 3JH3E(EPA), 3JH3CE, 4JH3-TE-YEU, 4JH3-DTE(YEU), 3JH3E-YEU-E, 4JH4-TE, 4JH4-THE, 4JH4-HTE1
​
JMP Marine Engine Cooling Pump: #JPR-YM04JHB
Replaces Yanmar Pump P/N: 129271-42502 (Replaces: 129271-42500, 129271-42501)
Replaces Johnson Pump P/N: 10-13328-01, 10-13328-03
3JH4, 3JH5, 4JH5 Series Engine Models: 4JH5E, 3JH4E, 4JH4E, 4JH4AE, 3JH5E, 4JH45, 4JH57, 4JH80, 4JH110
#CLP0101 JMP Marine
Engine Cooling Pump Clamp Set
​
Includes:
CLP0101 (CLAMP) - QTY:2
Approx Weight: 1.0lb (0.45kg)
​
Features:
C-Clamps with bolts and nuts
JMP Marine Engine Cooling Pump P/N: #JPR-CT3412
Replaces Caterpillar Pump P/N: 7C-3613, 7C3613 (3N7790 replaced by 7C3613)
JMP Marine Engine Cooling Pump P/N: #JPR-CT3508
Replaces Caterpillar Pump P/N: 7C-3614, 7C3614
#CAMSET0031 JMP Marine
Engine Cooling Pump Cam Set
​
Please note:
CAMSET0031 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
CAMSET0031 (CAM SET) - QTY:1
Items in Set: CAM, FIBER GASKET, HEX SCREW
Approx Weight: 0.50lb (0.23kg)
​
JMP Marine Engine Cooling Pump P/N: #JPR-S7632
Replaces Caterpillar Pump P/N: 4P7168, 113-1109, 152-8392, 167-4252, 170-6116
Replaces Sherwood Pump P/N: P1710, P1710-01, P1710-02, P1710-04, P1710A, P1710C, P1710X, P1726, P1726X, P1732-01, P1732-02, P1732A, P1732C, P1732X
Engine Models: 3116, 3126, 3126B, C7, C9
#MCSSET0003 JMP Marine
Engine Cooling Pump Mechanical Seal Set
​
Replacement For:
Caterpillar P/N: 7L2130, 7L-2130
Jabsco P/N: 6408-0000, 21849
Johnson P/N: 0.2247.051
​
Includes:
MCSSET0003 (MECHANICAL SEAL SET) - QTY:1
Approx Weight: 0.25lb (0.11kg)
​
JMP Marine Engine Cooling Pump: #JPR-CT3306
Replaces Caterpillar Pump P/N: 5N-9357, 5N9357
Replaces Jabsco P/N: 17810-1000, 17810-1300
​
JMP Marine Engine Cooling Pump: #JPR-CT3430
Replaces Caterpillar Pump P/N: 4L-5788, 4L5788
Replaces Jabsco Pump P/N: 6980-0001
#MCSSET0007 JMP Marine
Engine Cooling Pump Mechanical Seal Set
​
Replacement For:
Caterpillar P/N: 3N-5632, 3N5632
Jabsco P/N: 96080-0371
​
Includes:
MCSSET0007 (MECHANICAL SEAL SET) - QTY:1
Approx Weight: 0.30lb (0.14kg)
​
JMP Marine Engine Cooling Pump: #JPR-CT3406
Replaces Caterpillar Pump P/N: 3N-4851, 3N4851, 3N-4852, 3N4852, 5N-4852, 5N4852
Replaces Jabsco P/N: 17970-0100, 17970-0000
Engine Models: 3406, 3406B, 3406C
​
JMP Marine Engine Cooling Pump: #JPR-CT3530
Replaces Caterpillar Pump P/N: 3N-1888, 3N1888
Replaces Jabsco Pump P/N: 17360-1001
Engine Models: D336, D343, D353 C/D/E
#MCSSET0014 JMP Marine
Engine Cooling Pump Mechanical Seal Set
​
Please note:
MCSSET0014 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
MCSSET0014 (MECHANICAL SEAL SET) - QTY:1
Approx Weight: 0.15lb (0.07kg)
​
JMP Marine Engine Cooling Pump: #JPR-S7632
Replaces Caterpillar Pump P/N: 4P-7168, 4P7168, 113-1109, 1131109, 1528392, 152-8392, 1674252, 167-4252, 170-6116, 1706116
Replaces Sherwood Pump P/N: P1710, P1710-01, P1710-02, P1710-04, P1710A, P1710C, P1710X, P1726, P1726X, P1732-01, P1732-02, P1732A, P1732C, P1732X
Engine Models: 3116, 3126, 3126B, C7, C9
#CAMSET0005 JMP Marine
Engine Cooling Pump Cam Set
​
Includes:
CAMSET0005 (CAM SET) - QTY:1
Items in Set: CAM, FIBER GASKET, HEX SCREW
Approx Weight: 0.50lb (0.23kg)
​
JMP Marine Engine Cooling Pump P/N: #JPR-C1040
Replaces Cummins Pump P/N: 3010336, 3278137
Replaces Jabsco Pump P/N: 7420-0101, 7420-0004
#CAMSET0031 JMP Marine
Engine Cooling Pump Cam Set
​
Please note:
CAMSET0031 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
CAMSET0031 (CAM SET) - QTY:1
Items in Set: CAM, FIBER GASKET, HEX SCREW
Approx Weight: 0.50lb (0.23kg)
​
JMP Marine Engine Cooling Pump P/N: #JPR-S7630
Replaces Cummins Pump P/N: 3866493, 3897691, 3964765, 4003526, 5265994, 5265995, 5265996, 5265999, 526599500, 526599600, 526599900
Replaces Sherwood Pump P/N: P1730, P1730X, P1730-01, P1730-02, P1730F-01, P1730F-02, P1730A, P1730C, P1730X, P1731, P1731-01, P1731-02, P1731F-01, P1731F-02, P1731-04
Engine Models: 6BTA5.9M2, 6BTA5.9M(JWAC), 6BTA5.9M3(SWAC), 6CT8.3M, 6CT8.3-D(M), 6CTA8.3M, 6CTA8.3M2(SWAC), 6CTA8.3-D(M), 6CTA8.3-M1(JWAC)
​
JMP Marine Engine Cooling Pump P/N: #JPR-S7608
Replaces Cummins Pump P/N: 3897194, 3964767
Replaces Sherwood Pump P/N: 5268375, 4948142, 3974455
Engine Models: QSB5.9, QSB6.9
#CAMSET0019 JMP Marine
Engine Cooling Pump Cam Set Liner
​
Includes:
CAMSET0019 (CAM LINER) - QTY:1
Approx Weight: 5.25lb (2.40kg)
​
JMP Marine Engine Cooling Pump P/N: #JPR-C1905
Replaces Cummins Pump P/N: 3866609
Replaces Jabsco Pump P/N: 18770-0003
Engine Models: K19, K38, KT19M, KTA19M, KTA19M3/M6, KTA19-D(M1), QSK19, QSK19-M
#CAMSET0040 JMP Marine
Engine Cooling Pump Cam Ring
​
Includes:
CAMSET0040 (CAM RING) - QTY:1
Approx Weight: 4.25lb (1.93kg)
​
JMP Marine Engine Cooling Pump P/N: #JPR-C3800V
Replaces Cummins Pump P/N: 4314820, 3393018
Replaces Jabsco Pump P/N: 15780-0000
Engine Models: KTA38, KTA50
#CLP0101 JMP Marine
Engine Cooling Pump Clamp Set
​
Includes:
CLP0101 (CLAMP) - QTY:2
Approx Weight: 1.0lb (0.45kg)
​
Features:
C-Clamps with bolts and nuts
JMP Marine Engine Cooling Pump P/N: #JPR-C1900
Replaces Cummins Pump P/N: 3049158, 3074540
Replaces Gilkes Pump P/N: 44955-052
​
JMP Marine Engine Cooling Pump P/N: #JPR-C3800
Replaces Cummins Pump P/N: 3049157, 3085649, 3897669
#COV0005 JMP Marine
Engine Cooling Pump End Cover Plate
​
Please note:
COV0005 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
COV0005 (END COVER PLATE) - QTY:1
Approx Weight: 1.0lb (0.45kg)
​
JMP Marine Engine Cooling Pump P/N: #JPR-C1040
Replaces Cummins Pump P/N: 3010336, 3278137
Replaces Jabsco Pump P/N: 7420-0101, 7420-0004
#MCSSET0014 JMP Marine
Engine Cooling Pump Mechanical Seal Set
​
Please note:
MCSSET0014 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
MCSSET0014 (MECHANICAL SEAL SET) - QTY:1
Approx Weight: 0.15lb (0.07kg)
​
JMP Marine Engine Cooling Pump: #JPR-S7630
Replaces Cummins Pump P/N: 3866493, 3897691, 3964765, 4003526, 5265994, 5265995, 5265996, 5265999, 526599500, 526599600, 526599900
Replaces Sherwood Pump P/N: P1730, P1730X, P1730-01, P1730-02, P1730F-01, P1730F-02, P1730A, P1730C, P1730X, P1731, P1731-01, P1731-02, P1731F-01, P1731F-02, P1731-04
Engine Models: 6BTA5.9M2, 6BTA5.9M(JWAC), 6BTA5.9M3(SWAC), 6CT8.3M, 6CT8.3-D(M), 6CTA8.3M, 6CTA8.3M2(SWAC), 6CTA8.3-D(M), 6CTA8.3-M1(JWAC)
​
JMP Marine Engine Cooling Pump: #JPR-S7627
Replaces Cummins Pump P/N: 3897194, 3964767
Replaces Sherwood Pump P/N: P1727, P1727A, P1727C, P1727FB, P1727FB-01, P1727FB-02, P1727X
Engine Models: 6CT, 6CTA8.3M (JWAC), 6CTA8.3M2, & QSC engines
​
JMP Marine Engine Cooling Pump: #JPR-S7608
Replaces Cummins Pump P/N: 5268375, 4948142, 3974455
Replaces Sherwood Pump P/N: P270X, P2702-01, P2706-01, P2708X, P2710-01
Engine Models: QSB5.9, QSB6.9
#WER0027 JMP Marine
Engine Cooling Pump Wear Plate Set
​
Includes:
WER0027 (WEAR PLATE) - QTY:2
Approx Total Weight: 3.0lb (1.36kg)
​
JMP Marine Engine Cooling Pump P/N: #JPR-C3800V
Replaces Cummins Pump P/N: 4314820, 3393018, 4314522
Replaces Jabsco Pump P/N: 15780-0000
Engine Models: KTA38, KTA50
#WER0003 JMP Marine
Engine Cooling Pump Wear Plate
Please note:
WER0003 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
WER0003 (WEAR PLATE) - QTY:1
Approx Total Weight: 0.25lb (0.11kg)
​
JMP Marine Engine Cooling Pump: #JPR-C1040
Replaces Cummins Pump P/N: 3897194, 3964767
Replaces Jabsco Pump P/N: 3010336, 3278137
#CAMSET0019 JMP Marine
Engine Cooling Pump Cam Set Liner
​
Includes:
CAMSET0019 (CAM LINER) - QTY:1
Approx Weight: 5.25lb (2.40kg)
​
JMP Marine Engine Cooling Pump P/N: #JPR-G6400
Replaces Detroit Diesel Pump P/N: 23525078, 8927296
Replaces Jabsco Pump P/N: 18780-0001
Engine Models: 12V71TI, 12V92TA, 16V149TA, SERIES 149
​
JMP Marine Engine Cooling Pump P/N: #JPR-G6500
Replaces Detroit Diesel Pump P/N: 23525200, 23522735, 23535447
Replaces Jabsco Pump P/N: 17540-0001, 17540-0201
Engine Models: Series 60
#GEA0004 JMP Marine
Engine Cooling Pump Drive Gear
​
Includes:
GEA0004 (DRIVE GEAR) - QTY:1
Approx Weight: 1.0lb (0.45kg)
​
JMP Marine Engine Cooling Pump P/N: #JPR-G6100
Replaces Detroit Diesel Pump P/N: 2313002, 23501083, 23507971, 5107480, 5115396, 5115652, 5137208, 5186250
Replaces Jabsco Pump P/N: 2570-0051, 2570-3000, 2570-3100
#MCSSET0003 JMP Marine
Engine Cooling Pump Mechanical Seal Set
​
Replacement For:
Caterpillar P/N: 7L2130, 7L-2130
Jabsco P/N: 6408-0000, 21849
Johnson P/N: 0.2247.051
​
Includes:
MCSSET0003 (MECHANICAL SEAL SET) - QTY:1
Approx Weight: 0.25lb (0.11kg)
​
JMP Marine Engine Cooling Pump: #JPR-G6100
Replaces Detroit Diesel Pump P/N: 2313002, 23501083, 23507971, 5107480, 5115396, 5115652, 5137208, 5186250
Replaces Jabsco P/N: 2570-0051, 2570-3000, 2570-3100
​
JMP Marine Engine Cooling Pump: #JPR-G6200
Replaces Detroit Diesel Pump P/N: 23507972, 23501769, 5106016, 5122599, 8924265
Replaces Jabsco Pump P/N: 6980-3100
#MCSSET0007 JMP Marine
Engine Cooling Pump Mechanical Seal Set
​
Includes:
MCSSET0007 (MECHANICAL SEAL SET) - QTY:1
Approx Weight: 0.30lb (0.14kg)
​
JMP Marine Engine Cooling Pump: #JPR-G6500
Replaces Detroit Diesel Pump P/N: 23525200, 23522735, 23535447
Replaces Jabsco P/N: 17540-0001, 17540-0201
Engine Models: SERIES 60
​
JMP Marine Engine Cooling Pump: #JPR-G6400
Replaces Detroit Diesel Pump P/N: 23525078, 8927296
Replaces Jabsco Pump P/N: 18780-0001
Engine Models: 12V71TI, 12V92TA, 16V149TA, SERIES 149
​
JMP Marine Engine Cooling Pump: #JPR-G6300
Replaces Detroit Diesel Pump P/N: 23507973, 23507475, 23507476, 23507477, 23522698, 8923363
Replaces Jabsco Pump P/N: 18760-0001, 17367-8000
Engine Models: 8V71, 8V92TA, 8V92TI, 12V71, 16V92TA, Series 60
#CAMSET0031 JMP Marine
Engine Cooling Pump Cam Set
​
Please note:
CAMSET0031 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
CAMSET0031 (CAM SET) - QTY:1
Items in Set: CAM, FIBER GASKET, HEX SCREW
Approx Weight: 0.50lb (0.23kg)
​
JMP Marine Engine Cooling Pump P/N: #JPR-S7633
Replaces John Deere Pump P/N: RE515657
Replaces Sherwood Pump P/N: 7420-0101, 7420-0004
Engine Models: 6068SFM50
​
JMP Marine Engine Cooling Pump P/N: #JPR-S7619
Replaces John Deere Pump P/N: RE45458, RE45459, RE517226, RE540399
Replaces Sherwood Pump P/N: P1719 (Old P1711), P1719-01, P1719F-01, P1719X
Engine Models: 6067AFM, 6067AFM30, 6125AFM01, 6068SFM50, 6081AFM01, 6081AFM75, 6081AFH75, 6081HFH70
#COV0003 JMP Marine
Engine Cooling Pump End Cover Plate
​
Please note:
COV0003 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
COV0003 (END COVER PLATE) - QTY:1
Approx Weight: 0.50lb (0.23kg)
​
JMP Marine Engine Cooling Pump P/N: #JPR-JD25UH
Replaces John Deere Pump P/N: RE503068, RE535944
Replaces Johnson Pump P/N: 10-24753-01, 10-24907-01
Replaces Onan Pump P/N: 132-0435
#MCSSET0014 JMP Marine
Engine Cooling Pump Mechanical Seal Set
​
Please note:
MCSSET0014 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
MCSSET0014 (MECHANICAL SEAL SET) - QTY:1
Approx Weight: 0.15lb (0.07kg)
​
JMP Marine Engine Cooling Pump: #JPR-S7633
Replaces John Deere Pump P/N: RE515657
Replaces Sherwood Pump P/N: P1733X
Engine Models: 6068SFM50
​
JMP Marine Engine Cooling Pump: #JPR-S7619
Replaces John Deere Pump P/N: RE45458, RE45459, RE517226, RE540399
Replaces Sherwood Pump P/N: P1719 (Old P1711), P1719-01, P1719F-01, P1719X
Engine Models: 6067AFM, 6067AFM30, 6125AFM01, 6068SFM50, 6081AFM01, 6081AFM75, 6081AFH75, 6081HFH70
#CAMSET0005 JMP Marine
Engine Cooling Pump Cam Set
​
Includes:
CAMSET0005 (CAM SET) - QTY:1
Items in Set: CAM, FIBER GASKET, HEX SCREW
Approx Weight: 0.50lb (0.23kg)
​
JMP Marine Engine Cooling Pump P/N: #JPR-C1040
Replaces Northern Lights Pump P/N: 25-14801
Replaces Jabsco Pump P/N: 7420-0101, 7420-0004
#COV0003 JMP Marine
Engine Cooling Pump End Cover Plate
​
Please note:
COV0003 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
COV0003 (END COVER PLATE) - QTY:1
Approx Weight: 0.50lb (0.23kg)
​
JMP Marine Engine Cooling Pump P/N: #JPR-NL10IP
Replaces Northern Lights Pump P/N: 25-12057
Replaces Jabsco Pump P/N: 30410-9001
​
JMP Marine Engine Cooling Pump P/N: #JPR-NL10IP2
Replaces Northern Lights Pump P/N: 25-15405
#COV0005 JMP Marine
Engine Cooling Pump End Cover Plate
​
Please note:
COV0005 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
COV0005 (END COVER PLATE) - QTY:1
Approx Weight: 1.0lb (0.45kg)
​
JMP Marine Engine Cooling Pump P/N: #JPR-C1040
Replaces Northern Lights Pump P/N: 25-14801
Replaces Jabsco Pump P/N: 7420-0101, 7420-0004
#WER0003 JMP Marine
Engine Cooling Pump Wear Plate
Please note:
WER0003 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
WER0003 (WEAR PLATE) - QTY:1
Approx Total Weight: 0.25lb (0.11kg)
​
JMP Marine Engine Cooling Pump: #JPR-C1040
Replaces Northern Lights Pump P/N: 25-14801
Replaces Jabsco Pump P/N: 3010336, 3278137
#MCSSET0003 JMP Marine
Engine Cooling Pump Mechanical Seal Set
​
Includes:
MCSSET0003 (MECHANICAL SEAL SET) - QTY:1
Approx Weight: 0.25lb (0.11kg)
​
JMP Marine Engine Cooling Pump: #JPR-SC50IF
Replaces Scania Pump P/N: 21785018
Replaces Johnson P/N: 10-24308-02
#COV0005 JMP Marine
Engine Cooling Pump End Cover Plate
​
Please note:
COV0005 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
COV0005 (END COVER PLATE) - QTY:1
Approx Weight: 1.0lb (0.45kg)
​
JMP Marine Engine Cooling Pump P/N: #JPR-C1040
Replaces Scania Pump P/N: 21785018
Replaces Johnson Pump P/N: 10-24308-02
#WER0003 JMP Marine
Engine Cooling Pump Wear Plate
Please note:
WER0003 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
WER0003 (WEAR PLATE) - QTY:1
Approx Total Weight: 0.25lb (0.11kg)
​
JMP Marine Engine Cooling Pump: #JPR-SC50IF
Replaces Scania Pump P/N: 1785018
Replaces Johnson Pump P/N: 10-24308-02
#CAMSET0037 JMP Marine
Engine Cooling Pump Cam Set
​
Includes:
CAMSET0037 (CAM SET) - QTY:1
Approx Weight: 0.50lb (0.23kg)
​
JMP Marine Engine Cooling Pump: #JPR-VP0060DA
Replaces Volvo Penta Pump P/N: 21380890, 3589907
Replaces Jabsco Pump P/N: 50394-8300
Engine Models: D6 Series
​
JMP Marine Engine Cooling Pump: #JPR-VP0110DB
Replaces Volvo Penta Pump P/N: 22063494
Engine Models: D11 Series
#COV0005 JMP Marine
Engine Cooling Pump End Cover Plate
​
Please note:
COV0005 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
COV0005 (END COVER PLATE) - QTY:1
Approx Weight: 1.0lb (0.45kg)
​
JMP Marine Engine Cooling Pump P/N: #JPR-V5000
Replaces Volvo Penta Pump P/N: 3837935 (old #3825493)
Replaces Johnson Pump P/N: 10-13166-01
#MCSSET0003 JMP Marine
Engine Cooling Pump Mechanical Seal Set
​
Includes:
MCSSET0003 (MECHANICAL SEAL SET) - QTY:1
Approx Weight: 0.25lb (0.11kg)
​
JMP Marine Engine Cooling Pump: #JPR-V2000
Replaces Volvo Penta Pump P/N: 3829311 (Old 846354), 822787
Replaces Johnson Pump P/N: 10-21915
​
JMP Marine Engine Cooling Pump: #JPR-V3000
Replaces Volvo Penta Pump P/N: 3829313 (Old 866396), 3583112 (Old 845189), 3829312
​
JMP Marine Engine Cooling Pump: #JPR-V5000
Replaces Volvo Penta Pump P/N: 3837935 (Old 3825493)
Replaces Johnson Pump P/N: 10-13166-01
​
JMP Marine Engine Cooling Pump: #JPR-VP0110DA
Replaces Volvo Penta Pump P/N: 21219723
​
JMP Marine Engine Cooling Pump: #JPR-VP0120D
Replaces Volvo Penta Pump P/N: 3838207 (Old #865295)
​
JMP Marine Engine Cooling Pump: #JPR-VP0130D
Replaces Volvo Penta Pump P/N: 22905150 (Old #3886848)
​
JMP Marine Engine Cooling Pump: #JPR-VP0160D
Replaces Volvo Penta Pump P/N: 22905155 (Old #3589104)
#SHA0107 JMP Marine
Engine Cooling Pump Shaft
​
Includes:
SHA0107 (SHAFT) - QTY:1
Approx Weight: 0.30lb (0.15kg)
​
Material Features:
Marine Grade Shaft 3X Series Non-Magnetic
​
JMP Marine Engine Cooling Pump P/N: #JPR-VP0010DA
Replaces Volvo Penta Pump P/N: 3593654
Replaces Johnson Pump P/N: 10-24751-01
#SHA0125 JMP Marine
Engine Cooling Pump Shaft
​
Includes:
SHA0125 (SHAFT) - QTY:1
Approx Weight: 1.25lb (0.57kg)
​
Material Features:
Marine Grade Shaft 3X Series Non-Magnetic
​
JMP Marine Engine Cooling Pump P/N: #JPR-VP0060DA
Replaces Volvo Penta Pump P/N: 21380890 (old p/n: 3589907)
Replaces Jabsco Pump P/N: 50394-8300
#SPC0019 JMP Marine
Engine Cooling Pump Washer / Spacer
Includes:
SPC0019 (SPACER / WASHER) - QTY:1
​
JMP Marine Engine Cooling Pump P/N: JPR-VP0040DA, JPR-VP0050D, JPR-VP0060DA, JPR-VP0090D, JPR-VP0110DA, JPR-VP0110DB
#MCSSET0020 JMP Marine
Engine Cooling Pump Mechanical Seal Set
​
Please note:
MCSSET0020 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
MCSSET0020 (MECHANICAL SEAL SET) - QTY:1
Approx Weight: 0.15lb (0.07kg)
​
JMP Marine Engine Cooling Pump: #JPR-WB08IP
Replaces Westerbeke Pump P/N: 48080, 37431, 33636
Replaces Johnson Pump P/N: 10-36006
Engine Models: 4.0/4.4/6.0BCD, 4.4/7.7/8.0/11.0WMD, 20B Two, 30B3 Three
#RET0045 JMP Marine
Engine Cooling Pump Oil Seal / Retainer
​
Please note:
RET0045 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
RET0045 (OIL SEAL / RETAINER) - QTY:1
Approx Weight: 0.10lb (0.05kg)
​
JMP Marine Engine Cooling Pump: #JPR-WB08IP
Replaces Westerbeke Pump P/N: 48080, 37431, 33636
Replaces Johnson Pump P/N: 10-36006
Engine Models: 4.0/4.4/6.0BCD, 4.4/7.7/8.0/11.0WMD, 20B Two, 30B3 Three
#MCSSET0020 JMP Marine
Engine Cooling Pump Mechanical Seal Set
​
Please note:
MCSSET0020 cannot be used to service OEM pumps. This is due changes made internally for better performance & quality vs OEM.
​
Includes:
MCSSET0020 (MECHANICAL SEAL SET) - QTY:1
Approx Weight: 0.15lb (0.07kg)
​
JMP Marine Engine Cooling Pump: #JPR-YM08IH
Replaces Yanmar Pump P/N: 128397-42500, 128990-42500
Replaces Johnson Pump P/N: 10-24509-01, 10-13337-01, F4B-903
Engine Models: 2GMF, 3GMF, 2YM, 3YM
​
JMP Marine Engine Cooling Pump: #JPR-YM08IH2
Replaces Yanmar Pump P/N: 128377-42500
Replaces Johnson Pump P/N: 10-24509-02, F4B-902
Engine Models: 2GM, 3GM
